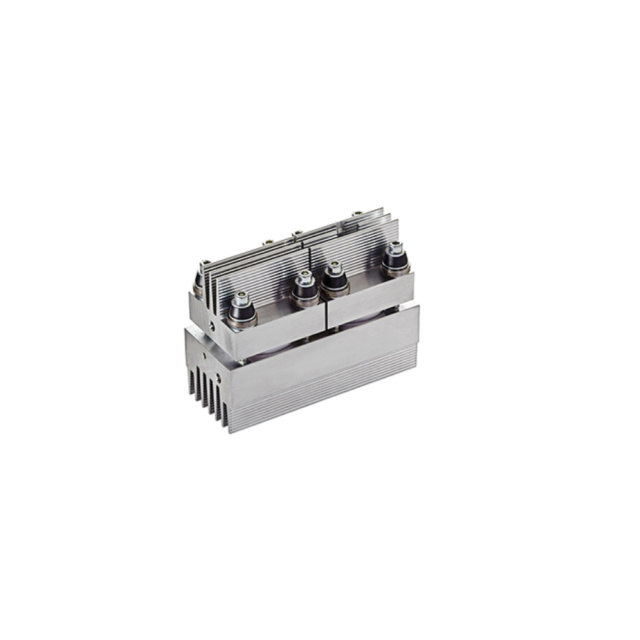

STT1400N18P55XPSA1
THYR / DIODE MODULE DKManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
Infineon Technologies STT1400N18P55XPSA1 is a 1-phase SCR module designed for high-power applications. This chassis mount module features two SCRs with a maximum off-state voltage of 1.8 kV. It offers a surge current capability of 10500A at 60Hz, ensuring robust performance under demanding conditions. The module has a gate trigger current (Igt) of 200 mA and a hold current (Ih) of 300 mA, with a maximum gate trigger voltage (Vgt) of 2 V. Operating at temperatures up to 125°C (TJ), this component is suitable for use in heavy industrial equipment, power control systems, and renewable energy infrastructure. The STT1400N18P55XPSA1 is packaged in a tray for efficient handling and integration.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 98 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | 125°C (TJ) |
| Structure | 1-Phase Controller - All SCRs |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Gate Trigger (Igt) (Max) | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 10500A @ 60Hz |
| Number of SCRs, Diodes | 2 SCRs |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Voltage - Off State | 1.8 kV |
