TDA7110FHTMA1
RF TX IC ASK 433-435MHZ 10TFSOPManufacturer: Infineon Technologies
Categories: RF Transmitters
Quality Control: Learn More
Infineon Technologies TDA7110FHTMA1 is an RF transmitter IC supporting ASK and FSK modulation in the 433MHz to 435MHz frequency band. This component delivers an output power of 11dBm and operates with a supply voltage range of 2.1V to 4V, drawing a transmitting current of 21mA. Designed for surface mount applications, it features a PCB mountable antenna connector. The TDA7110FHTMA1 is packaged in a 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) and is supplied on tape and reel. It is commonly utilized in remote control systems, keyless entry (RKE), and security systems. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Frequency | 433MHz ~ 435MHz |
| Memory Size | - |
| Modulation or Protocol | ASK, FSK |
| Data Interface | PCB, Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.1V ~ 4V |
| Power - Output | 11dBm |
| Applications | Remote Control, RKE, Security Systems |
| Data Rate (Max) | - |
| Current - Transmitting | 21mA |
| Antenna Connector | PCB, Surface Mount |
| Supplier Device Package | PG-TSSOP-10-2 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
TDK5101XUMA1
RF TX IC ASK/FSK 315MHZ 16TSSOP

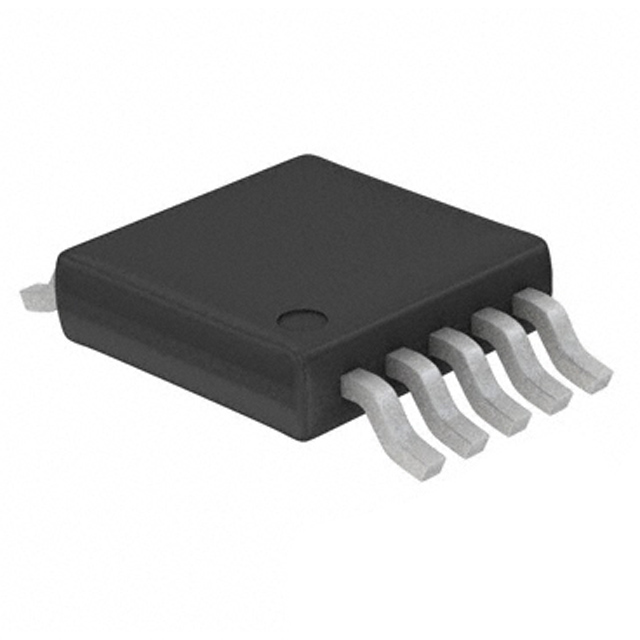

TDA5150HTMA1
