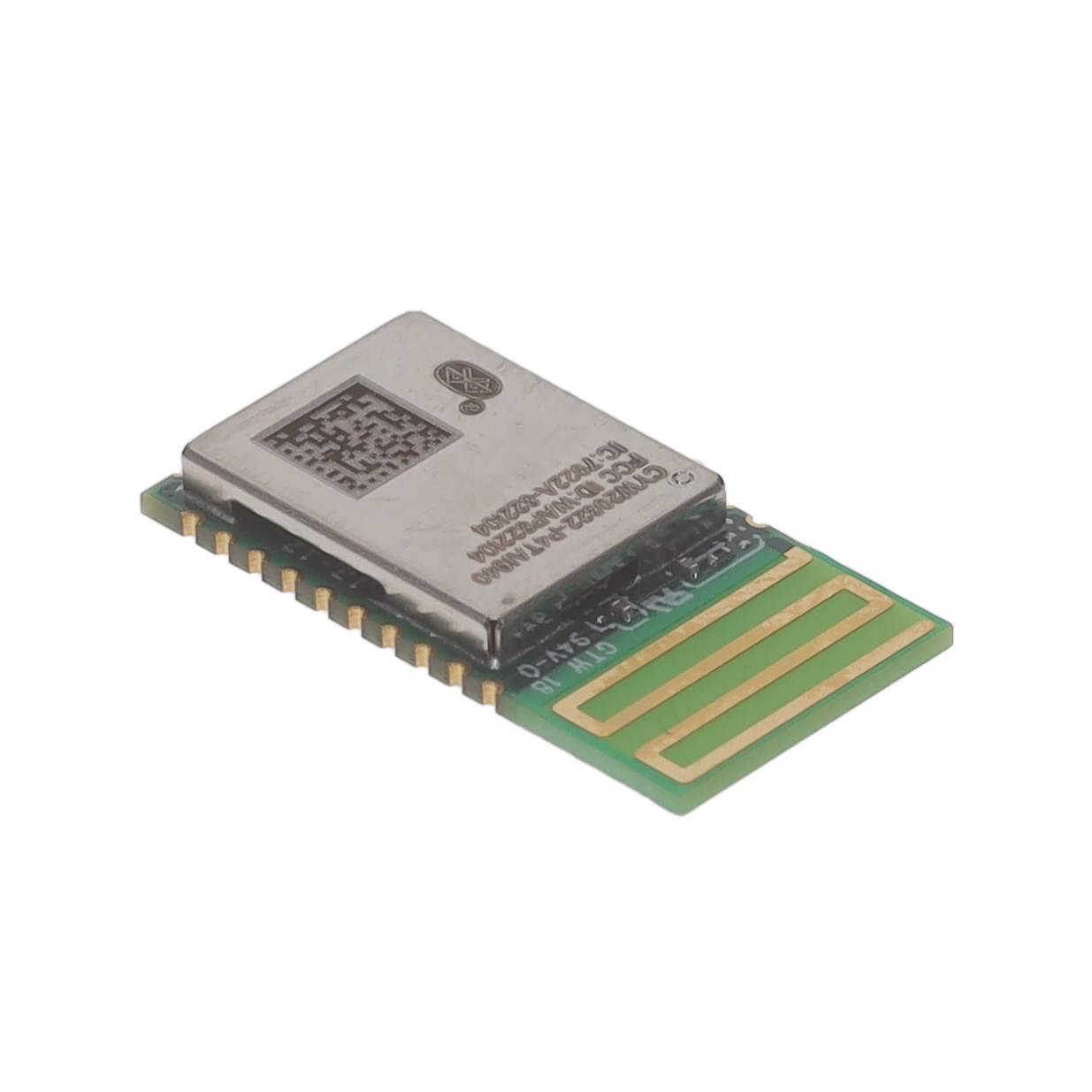

CYW20822P4TAI040XUMA1
RF TXRX MOD BT TH SMDManufacturer: Infineon Technologies
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Infineon Technologies CYW20822P4TAI040XUMA1 is a Bluetooth v5.0 transceiver module designed for robust wireless connectivity. This surface mount device features an integrated trace antenna and supports a data rate of 2Mbps. It operates across a voltage supply range of 1.7V to 3.3V, with typical receiving current consumption of 1.3mA and transmitting current ranging from 1.4mA to 4mA. The module boasts a transmit power of 4dBm and a receive sensitivity of -101dBm. On-chip memory includes 1MB of Flash and 128kB of RAM. Connectivity is facilitated through multiple serial interfaces including ADC, GPIO, I2C, PDM, PWM, SPI, and UART. This component is suitable for applications in consumer electronics, personal area networks, and industrial IoT. The module is supplied in tape & reel packaging and operates within an extended temperature range of -45°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | 27-SMD Module |
| Sensitivity | -101dBm |
| Mounting Type | Surface Mount |
| Frequency | - |
| Memory Size | 1MB Flash, 128kB RAM |
| Operating Temperature | -45°C ~ 85°C |
| Voltage - Supply | 1.7V ~ 3.3V |
| Power - Output | 4dBm |
| Data Rate | 2Mbps |
| Protocol | Bluetooth v5.0 |
| Current - Receiving | 1.3mA |
| Current - Transmitting | 1.4mA ~ 4mA |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | ADC, GPIO, I2C, PDM, PWM, SPI, UART |
