CYBT-483062-02
RF TXRX MOD BLUETOOTH CHIP SMDManufacturer: Infineon Technologies
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Infineon Technologies CYBT-483062-02, an EZ-BT™ XR WICED® series Bluetooth transceiver module, offers a robust solution for wireless connectivity. This surface mount component supports Bluetooth v5.0 + EDR with a 2.4GHz operating frequency and a data rate of up to 3Mbps. Featuring an integrated chip antenna, the CYBT-483062-02 boasts a transmit power of 20dBm and a receive sensitivity of -95dBm. The module integrates 1MB Flash, 512kB RAM, and 2MB ROM for embedded applications. It provides a comprehensive set of serial interfaces including ADC, GPIO, I2C, I2S, PCM, PDM, PWM, SPI, and UART, facilitating seamless integration with various microcontrollers. Designed for operation between -30°C and 85°C, this module is suitable for applications in consumer electronics, industrial automation, and smart home devices. The CYBT-483062-02 is supplied on a tape and reel.
Additional Information
Series: EZ-BT™ XR WICED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 34-SMD Module |
| Sensitivity | -95dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 1MB Flash, 512kB RAM, 2MB ROM |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply | 1.76V ~ 3.63V |
| Power - Output | 20dBm |
| Data Rate | 3Mbps |
| Protocol | Bluetooth v5.0 + EDR |
| Current - Receiving | 5.9mA |
| Current - Transmitting | 5.6mA |
| Antenna Type | Integrated, Chip |
| Utilized IC / Part | CYW20719 |
| Modulation | 8DPSK, DQPSK, GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | ADC, GPIO, I2C, I2S, PCM, PDM, PWM, SPI, UART |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

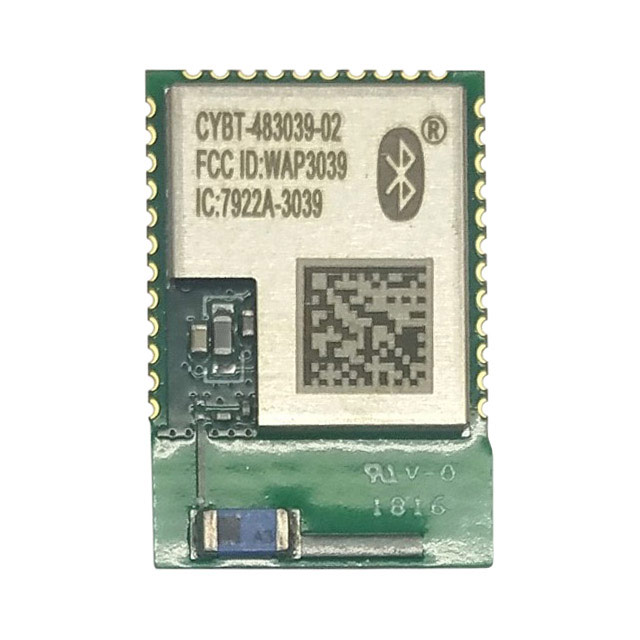

CYBT-483039-02
