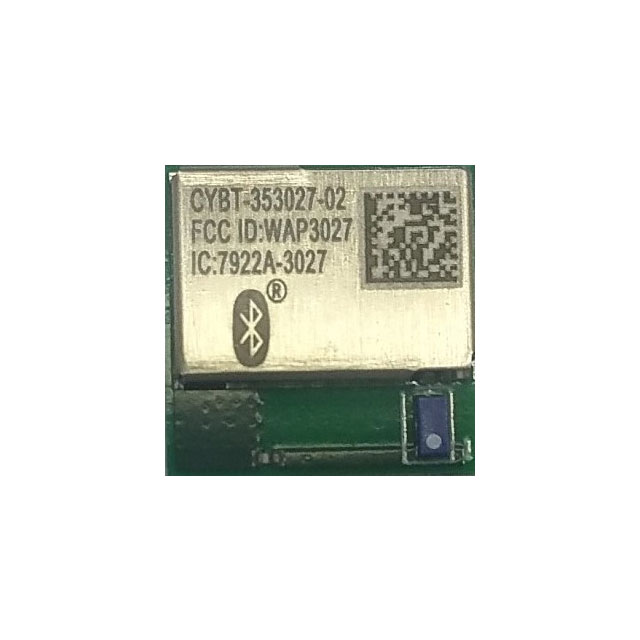

CYBT-353027-02
RF TXRX MOD BT TH SMDManufacturer: Infineon Technologies
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
The Infineon Technologies CYBT-353027-02 is a Bluetooth v5.0 transceiver module from the EZ-BT™ WICED® series, designed for robust wireless connectivity. This surface mount component operates in the 2.402GHz to 2.48GHz frequency band, offering a data rate of up to 6Mbps. Key features include an integrated trace antenna, 512kB of Flash memory, and support for modulation schemes such as 8DPSK, DQPSK, and GFSK. Power output is rated at 12dBm, with a receive sensitivity of -96.5dBm. The module supports multiple serial interfaces including I2C, I2S, PCM, SPI, and UART, facilitating integration into complex designs. Power is supplied via a 2.3V to 3.6V range. This component finds application in automotive, industrial, and consumer electronics sectors requiring reliable Bluetooth communication. It is supplied in a 19-SMD Module package on tape and reel.
Additional Information
Series: EZ-BT™ WICED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 19-SMD Module |
| Sensitivity | -96.5dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.402GHz ~ 2.48GHz |
| Memory Size | 512kB Flash |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Voltage - Supply | 2.3V ~ 3.6V |
| Power - Output | 12dBm |
| Data Rate | 6Mbps |
| Protocol | Bluetooth v5.0 |
| Current - Receiving | 26.4mA |
| Current - Transmitting | 60.3mA |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | - |
| Modulation | 8DPSK, DQPSK, GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2C, I2S, PCM, SPI, UART |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
CYBT-333032-02
RF TXRX MODULE BLUETOOTH SMD

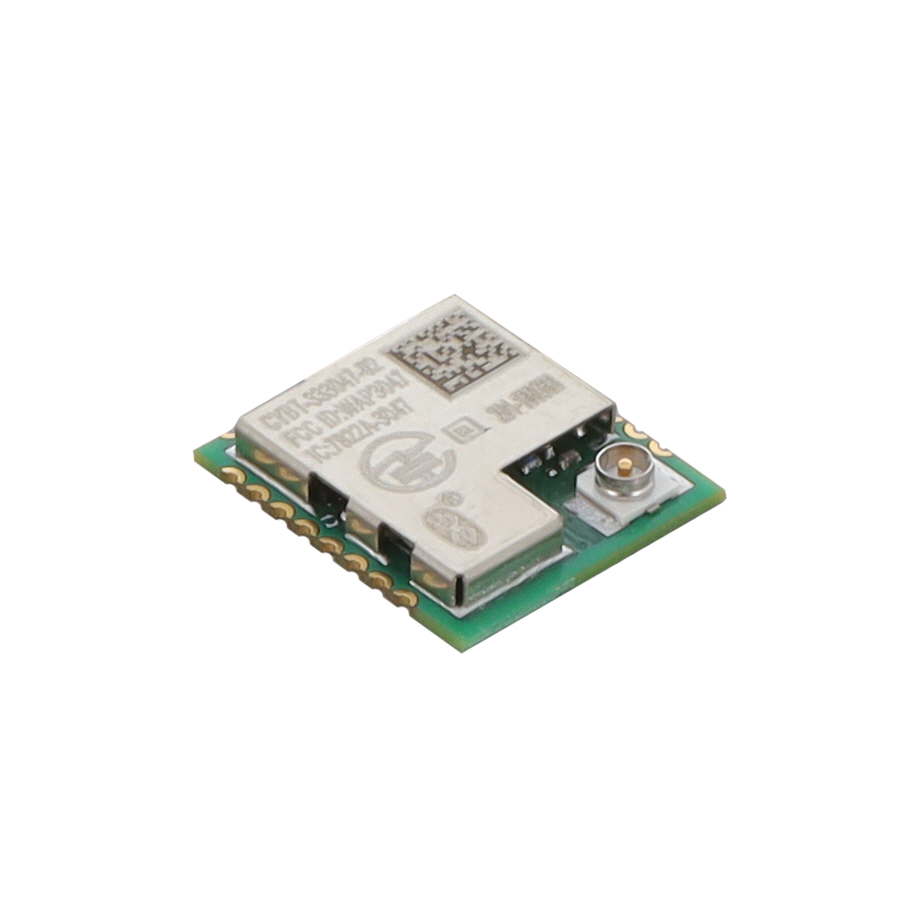

CYBT-333047-02
RF TXRX MOD BLUETOOTHU.FL SMD

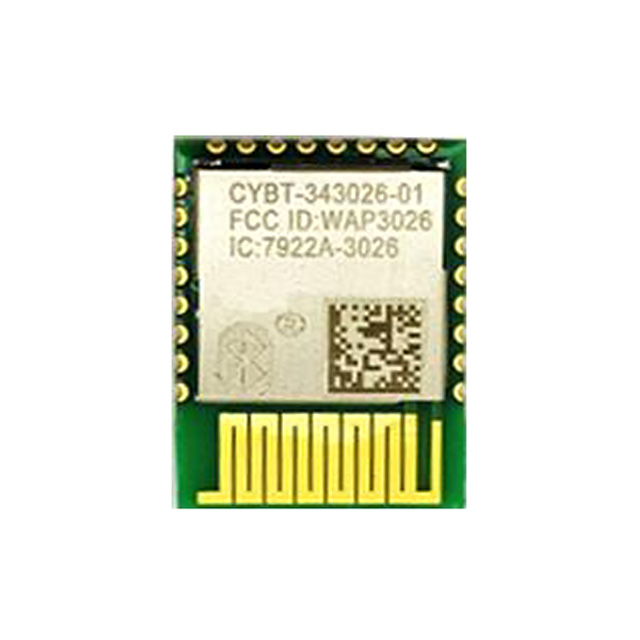

CYBT-343026-01
