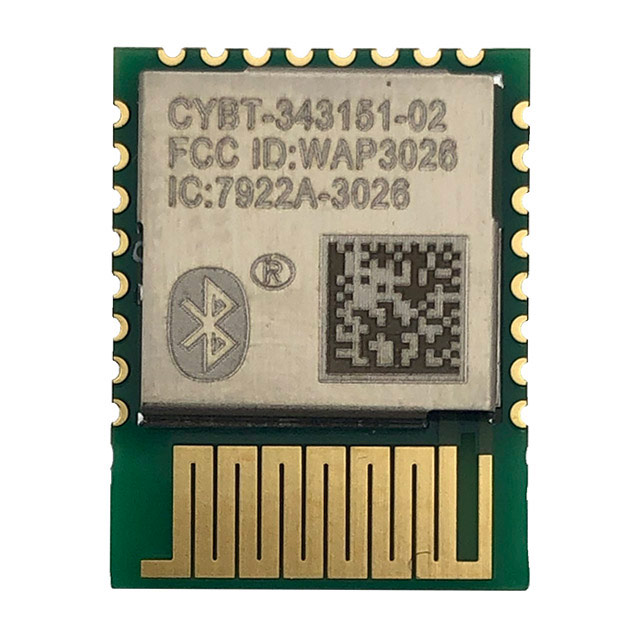

CYBT-343151-02
RF TXRX MOD BT TH SMDManufacturer: Infineon Technologies
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Infineon Technologies CYBT-343151-02, an EZ-BT™ WICED series Bluetooth v5.0 transceiver module, offers robust wireless connectivity for demanding applications. This 2.402GHz to 2.48GHz ISM band module features an integrated trace antenna and a 24-SMD Module package for surface mounting. Designed for efficient operation, it supports data rates up to 3Mbps with modulation schemes including 8DPSK, DQPSK, and GFSK. Transmit power is rated at 12dBm, with a receiver sensitivity of -96.5dBm. Power consumption is 26.4mA during reception and 60.3mA during transmission. The module includes essential serial interfaces such as I2C, I2S, PCM, SPI, and UART, and is equipped with 512kB of Flash memory. Operating across a temperature range of -30°C to 85°C, this component is suitable for use in consumer electronics, industrial automation, and automotive systems. The CYBT-343151-02 is supplied in a Tape & Reel (TR) package.
Additional Information
Series: EZ-BT™ WICEDRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SMD Module |
| Sensitivity | -96.5dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.402GHz ~ 2.48GHz |
| Memory Size | 512kB Flash |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Voltage - Supply | 2.3V ~ 3.6V |
| Power - Output | 12dBm |
| Data Rate | 3Mbps |
| Protocol | Bluetooth v5.0 |
| Current - Receiving | 26.4mA |
| Current - Transmitting | 60.3mA |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | - |
| Modulation | 8DPSK, DQPSK, GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2C, I2S, PCM, SPI, UART |
| Programmable | Not Verified |
