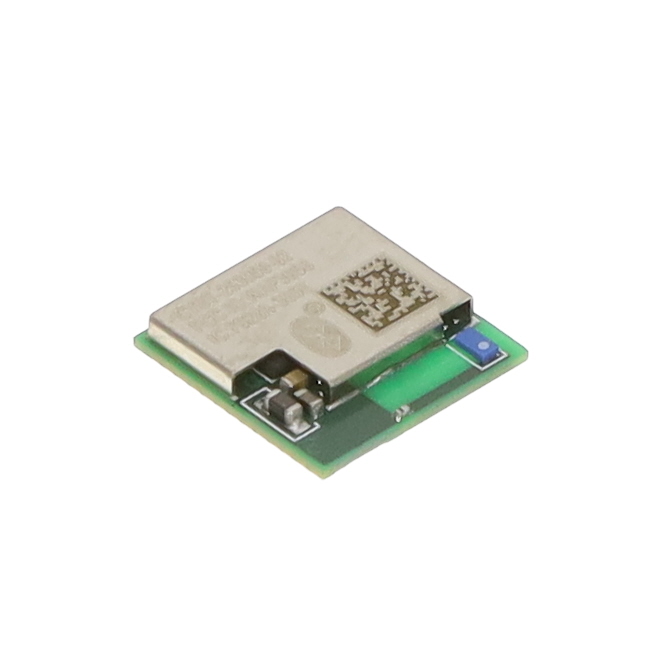

CYBT-253059-02
RF TXRX MOD BLUETOOTH CHIP SMDManufacturer: Infineon Technologies
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Infineon Technologies CYBT-253059-02 is a Bluetooth v5.0 transceiver module designed for surface mount applications. This module operates in the 2.4GHz ISM band, supporting a data rate of up to 3Mbps with GFSK modulation. It features an integrated chip antenna, simplifying design and reducing external component count. Power consumption is efficient, with typical receive current at 5.9mA and transmit current at 22mA, with an output power of 10.5dBm.
The CYBT-253059-02 provides a robust set of serial interfaces including GPIO, HCI, I2C, I2S, PCM, PWM, SPI, and UART, facilitating seamless integration into a wide range of embedded systems. On-chip memory includes 256kB of Flash and 176kB of RAM. Operating across a temperature range of -30°C to 85°C, this module is suitable for demanding applications in industrial automation, consumer electronics, and wireless connectivity solutions. It is supplied in a 35-SMD Module package on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 35-SMD Module |
| Sensitivity | -95dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 256kB Flash, 176kB RAM |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply | 2.6V ~ 3.3V |
| Power - Output | 10.5dBm |
| Data Rate | 3Mbps |
| Protocol | Bluetooth v5.0 |
| Current - Receiving | 5.9mA |
| Current - Transmitting | 22mA |
| Antenna Type | Integrated, Chip |
| Utilized IC / Part | - |
| Modulation | GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | GPIO, HCI, I2C, I2S, PCM, PWM, SPI, UART |
| Programmable | Not Verified |
