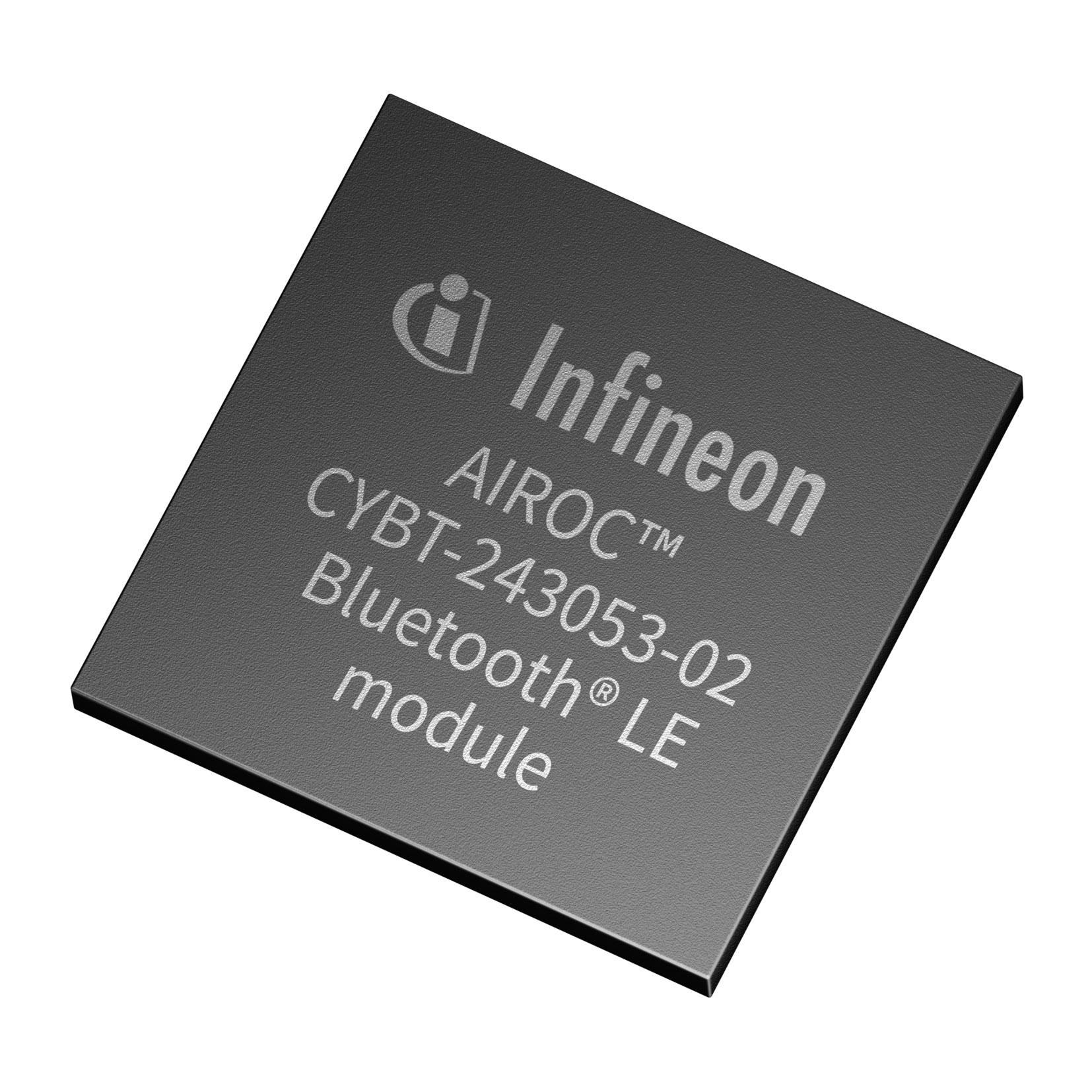

CYBT-243053-02
RF TXRX MOD BT PCB TH SMDManufacturer: Infineon Technologies
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
The Infineon Technologies CYBT-243053-02 is a Bluetooth v5.0 transceiver module designed for robust wireless connectivity. Operating in the 2.4GHz ISM band, this module utilizes GFSK modulation and supports data rates up to 3Mbps. It features an integrated PCB trace antenna and is packaged for surface mounting in a 35-SMD Module case. Key electrical specifications include a transmit power of 10.5dBm, a receive sensitivity of -94.5dBm, and typical current consumption of 5.9mA during reception and 22mA during transmission. On-board memory includes 256kB of Flash and 176kB of RAM, facilitating complex applications. The CYBT-243053-02 offers a comprehensive set of serial interfaces, including GPIO, HCI, I2C, I2S, PCM, PWM, SPI, and UART, enabling flexible integration into various system architectures. This component is suitable for a range of applications, including IoT devices, wearables, and industrial automation systems. It operates within an ambient temperature range of -30°C to 85°C and is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 35-SMD Module |
| Sensitivity | -94.5dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 256kB Flash, 176kB RAM |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply | 2.6V ~ 3.3V |
| Power - Output | 10.5dBm |
| Data Rate | 3Mbps |
| Protocol | Bluetooth v5.0 |
| Current - Receiving | 5.9mA |
| Current - Transmitting | 22mA |
| Antenna Type | PCB Trace |
| Utilized IC / Part | - |
| Modulation | GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | GPIO, HCI, I2C, I2S, PCM, PWM, SPI, UART |
| Programmable | Not Verified |
