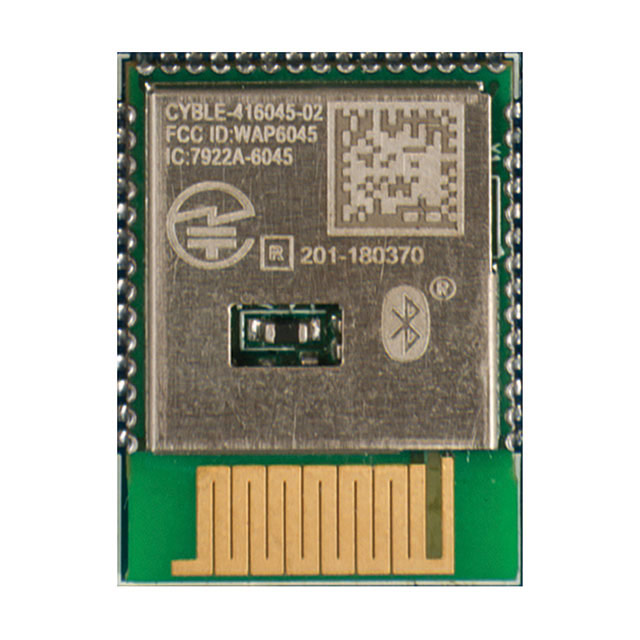

CYBLE-416045-02
RF TXRX MOD BT TH SMDManufacturer: Infineon Technologies
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Infineon Technologies EZ-BLE™ PSOC™ CYBLE-416045-02 is a Bluetooth v5.0 transceiver module designed for robust wireless connectivity. This surface mount device operates in the 2.4GHz to 2.5GHz ISM band, offering a maximum output power of 4dBm and a sensitivity of -95dBm. Featuring an integrated trace antenna, it supports data rates up to 2Mbps with GFSK modulation. The module incorporates 1MB of Flash memory, 128kB of ROM, and 288kB of SRAM, facilitating complex application development. Power consumption is efficient, with receiving current at 6.7mA and transmitting current at 5.7mA. It supports multiple serial interfaces including I2S, SPI, and UART, and operates across a voltage range of 1.71V to 3.6V. The CYBLE-416045-02 is commonly found in industrial automation, wearables, and consumer electronics applications. Supplied in Tape & Reel packaging.
Additional Information
Series: EZ-BLE™ PSOC™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 43-SMD Module |
| Sensitivity | -95dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz ~ 2.5GHz |
| Memory Size | 1MB Flash, 128kB ROM, 288kB SRAM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.71V ~ 3.6V |
| Power - Output | 4dBm |
| Data Rate | 2Mbps |
| Protocol | Bluetooth v5.0 |
| Current - Receiving | 6.7mA |
| Current - Transmitting | 5.7mA |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | - |
| Modulation | GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2S, SPI, UART |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

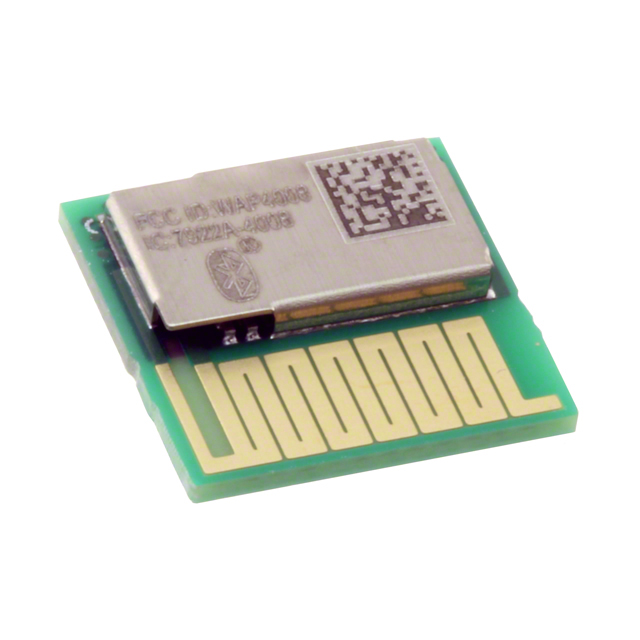

CYBLE-014008-00
RF TXRX MOD BT TH SMD
CYBLE-214009-00
RF TXRX MOD BT TH SMD

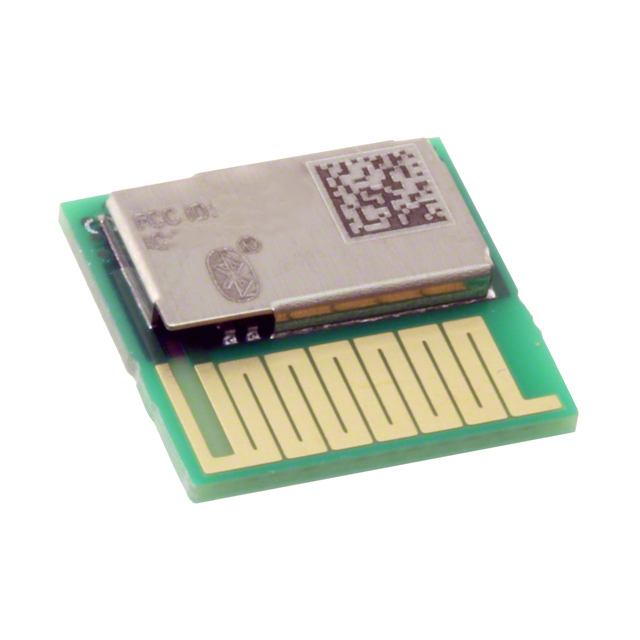

CYBLE-214015-01
