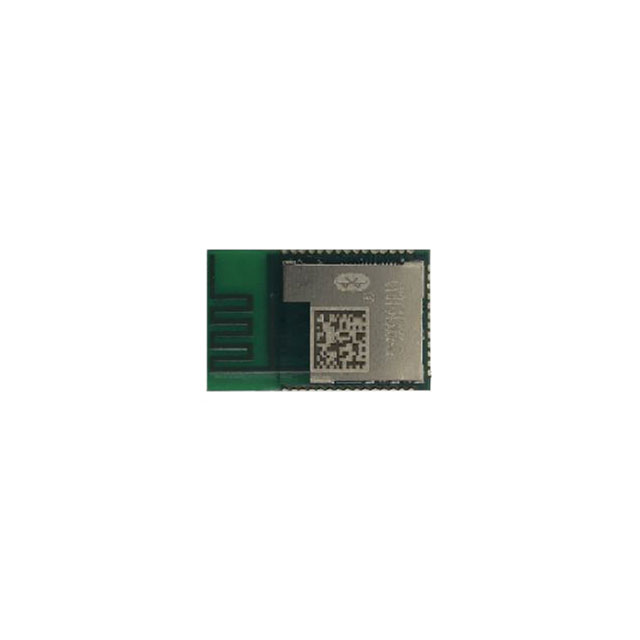

CYBLE-333074-02
RF TXRX MOD BLUETOOTHU.FL SMDManufacturer: Infineon Technologies
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Infineon Technologies AIROC™ Bluetooth® Series CYBLE-333074-02 is a Bluetooth v5.2 transceiver module operating in the 2.4GHz band. This surface mount component, utilizing the CYW20835 IC, offers a data rate of up to 6Mbps with GFSK modulation. Key features include a transmit power of 12dBm and a receive sensitivity of -94.5dBm. The module is equipped with 512kB of Flash memory and 384kB of RAM, supporting serial interfaces such as ADC, I2C, PWM, SPI, and UART. It requires a supply voltage between 2.5V and 3.6V, with typical current consumption of 18mA during transmission and 8mA during reception. The CYBLE-333074-02 is supplied on tape and reel and features a U.FL connector for external antenna connection. This module is suitable for applications in the IoT, consumer electronics, and wireless connectivity sectors. The operating temperature range is -30°C to 85°C.
Additional Information
Series: AIROC™ Bluetooth®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 43-SMD Module |
| Sensitivity | -94.5dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 512kB Flash, 384kB RAM |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply | 2.5V ~ 3.6V |
| Power - Output | 12dBm |
| Data Rate | 6Mbps |
| Protocol | Bluetooth v5.2 |
| Current - Receiving | 8mA |
| Current - Transmitting | 18mA |
| Antenna Type | Antenna Not Included, U.FL |
| Utilized IC / Part | CYW20835 |
| Modulation | GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | ADC, I2C, PWM, SPI, UART |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
CYBLE-343072-02
RF TXRX MOD BT TH SMD

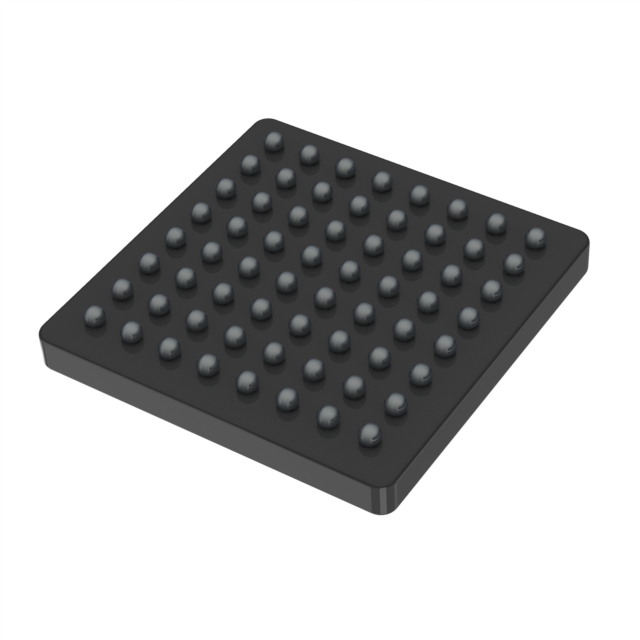

CYW20819A1KFBG
