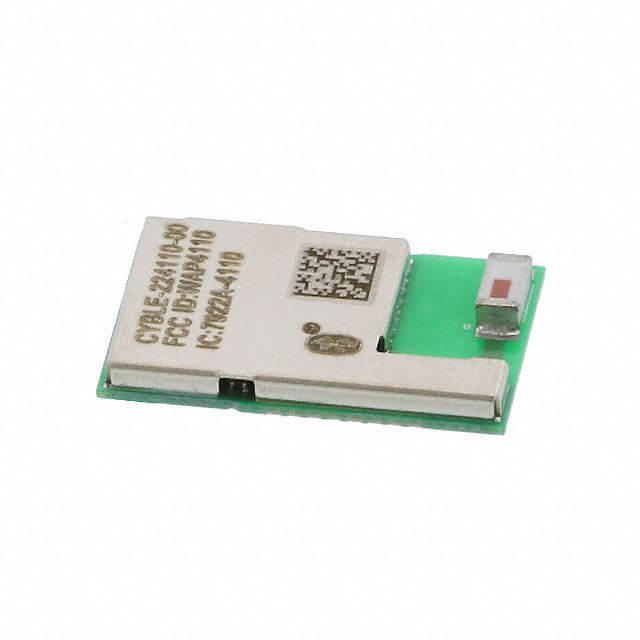

CYBLE-224110-00
RF TXRX MOD BLUETOOTH CHIP SMDManufacturer: Infineon Technologies
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Infineon Technologies CYBLE-224110-00 is a Bluetooth v4.1 transceiver module designed for robust wireless connectivity. Operating in the 2.4GHz ISM band, this surface mount component features an integrated chip antenna, simplifying board layout. It supports a data rate of 1Mbps and offers a transmit power of up to 9.5dBm, with a receive sensitivity of -95dBm. On-board memory includes 256kB of Flash and 32kB of SRAM. The module facilitates communication via I2C, SPI, and UART serial interfaces. With a supply voltage range of 1.8V to 5.5V, it is suitable for applications requiring efficient Bluetooth communication in the automotive, industrial, and consumer electronics sectors. Operating temperature ranges from -40°C to 105°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Module |
| Sensitivity | -95dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 256kB Flash, 32kB SRAM |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 1.8V ~ 5.5V |
| Power - Output | 9.5dBm |
| Data Rate | 1Mbps |
| Protocol | Bluetooth v4.1 |
| Current - Receiving | 21.5mA |
| Current - Transmitting | 20mA |
| Antenna Type | Integrated, Chip |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
