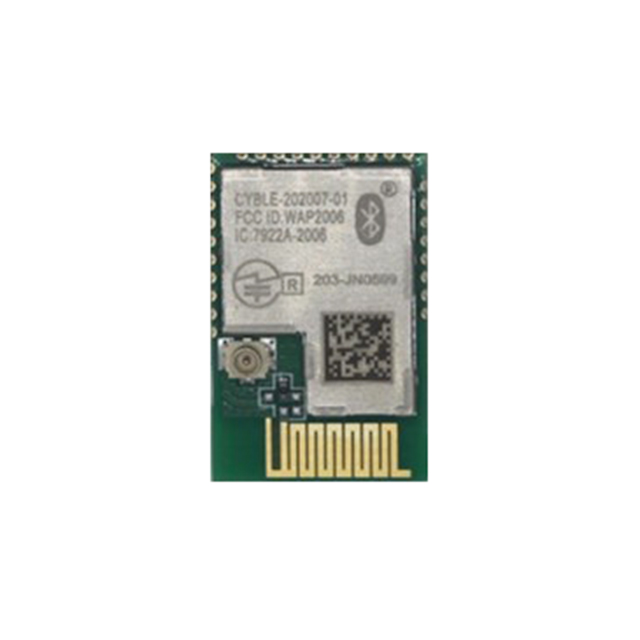

CYBLE-202007-01
RF TXRX MOD BT TH SMDManufacturer: Infineon Technologies
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
The Infineon Technologies PRoC™ BLE CYBLE-202007-01 is a Bluetooth v4.2 transceiver module designed for 2.4GHz wireless applications. This surface mount module features an integrated trace antenna and offers a data rate of 1Mbps with a transmit power of 7.5dBm. Receiving current is rated at 16.4mA, and transmitting current at 27mA. The module incorporates 256kB of Flash memory and 32kB of SRAM, supporting I2C, SPI, and UART serial interfaces. Operating within a supply voltage range of 1.8V to 4.5V and an extended temperature range of -40°C to 85°C, this 30-SMD module is suitable for deployment in industrial, consumer electronics, and medical device sectors.
Additional Information
Series: PRoC™ BLERoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 30-SMD Module |
| Sensitivity | -93dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 256kB Flash, 32kB SRAM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 4.5V |
| Power - Output | 7.5dBm |
| Data Rate | 1Mbps |
| Protocol | Bluetooth v4.2 |
| Current - Receiving | 16.4mA |
| Current - Transmitting | 27mA |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
