CYBLE-022001-00
RF TXRX MOD BLUETOOTH CHIP SMDManufacturer: Infineon Technologies
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More

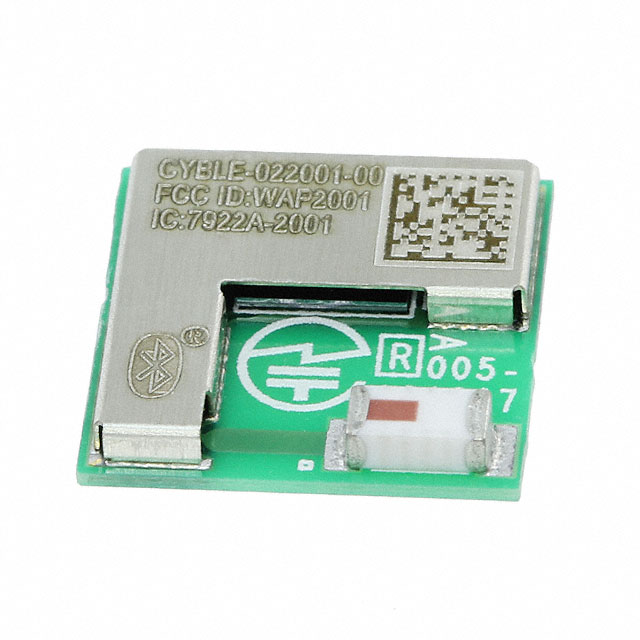

Infineon Technologies CYBLE-022001-00 is a Bluetooth v4.1 transceiver module featuring an integrated chip antenna. Operating in the 2.4GHz band, this EZ-BLE™ PRoC™ series component supports a 1Mbps data rate. The module offers excellent performance with a transmit power of 3dBm and a receive sensitivity of -91dBm. Power consumption is efficient, drawing 15.6mA during transmission and 16.4mA during reception. Onboard memory includes 128kB of Flash and 16kB of SRAM, providing ample space for application code and data. Connectivity is facilitated through I2C, SPI, and UART serial interfaces. Designed for surface mount integration, the module is provided in a 21-SMD Module package on tape and reel. It operates within a voltage range of 1.8V to 4.5V and a temperature range of -40°C to 85°C. This component is well-suited for applications in the Internet of Things (IoT), wearables, and industrial automation.
Additional Information
Series: EZ-BLE™ PRoC™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 21-SMD Module |
| Sensitivity | -91dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 128kB Flash, 16kB SRAM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 4.5V |
| Power - Output | 3dBm |
| Data Rate | 1Mbps |
| Protocol | Bluetooth v4.1 |
| Current - Receiving | 16.4mA |
| Current - Transmitting | 15.6mA |
| Antenna Type | Integrated, Chip |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

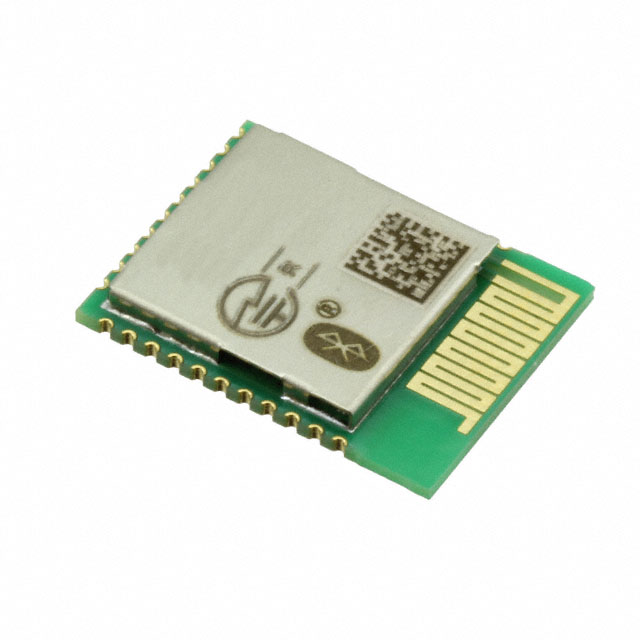

CYBLE-012011-00
RF TXRX MOD BT TH SMD

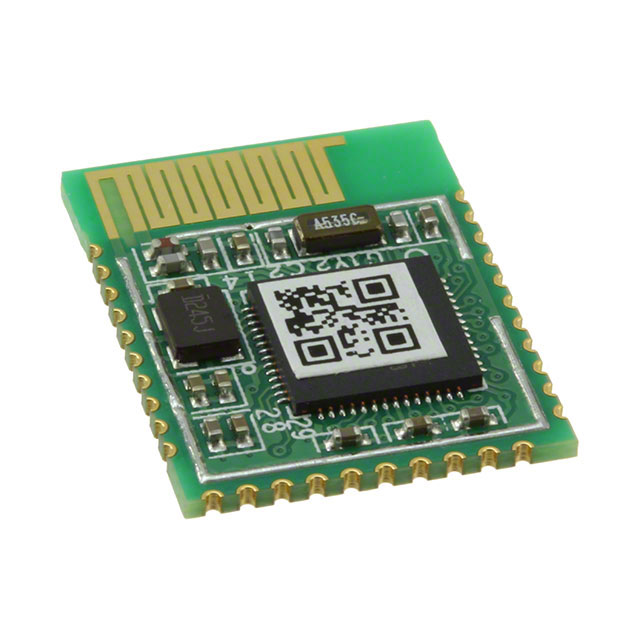

CYBLE-012012-10
RF TXRX MOD BT TH SMD

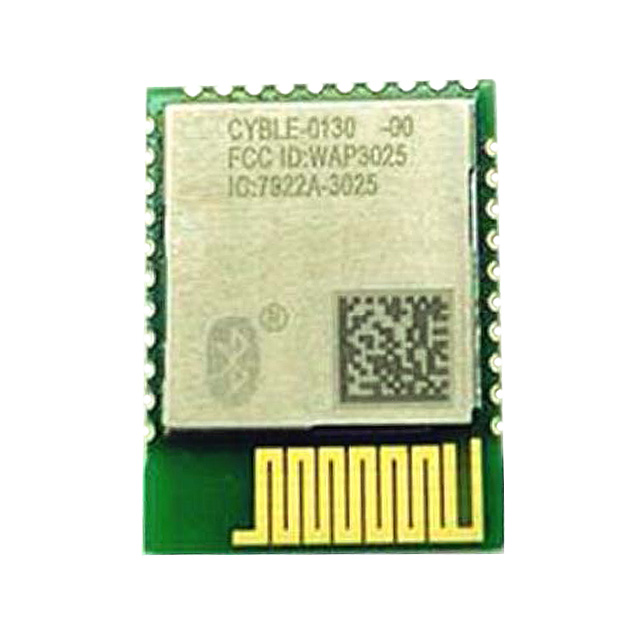

CYBLE-013025-00
