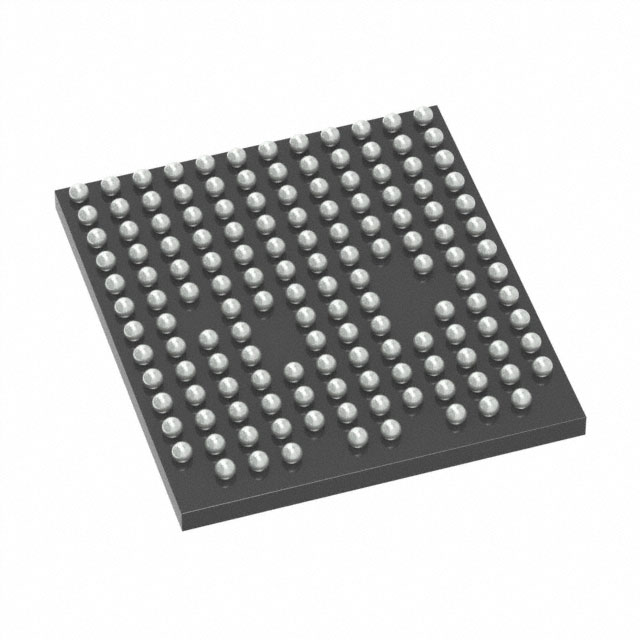

CYW4339XKUBGT
IC RF TXRX+MCU BLE 145WLBGAManufacturer: Infineon Technologies
Categories: RF Transceiver ICs
Quality Control: Learn More
Infineon Technologies CYW4339XKUBGT is a highly integrated wireless connectivity solution combining a Bluetooth v4.1 and 802.11a/b/g/n radio with an embedded microcontroller. This TxRx + MCU device operates across the 2.4GHz and 5GHz bands, supporting data rates up to 3Mbps with modulation schemes including 8DPSK, DQPSK, and GFSK. Key specifications include a transmit power of 13dBm and a receive sensitivity of -95.5dBm. It features multiple serial interfaces such as I2S, SPI, and UART, along with 9 GPIO pins, facilitating flexible system integration. The CYW4339XKUBGT is supplied in a 145-WLBGA package, suitable for surface mount applications, and operates within a temperature range of -30°C to 85°C. This component finds application in various industries requiring robust wireless communication, such as consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 145-UFBGA, WLBGA |
| Sensitivity | -95.5dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz, 5GHz |
| Memory Size | - |
| Type | TxRx + MCU |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply | 1.2V ~ 3.3V |
| Power - Output | 13dBm |
| Protocol | 802.11a/b/g/n, Bluetooth v4.1 |
| Current - Receiving | 110mA |
| Data Rate (Max) | 3Mbps |
| Current - Transmitting | 340mA |
| Supplier Device Package | 145-WLBGA (4.87x5.41) |
| GPIO | 9 |
| Modulation | 8DPSK, DQPSK, GFSK |
| RF Family/Standard | Bluetooth, WiFi |
| Serial Interfaces | I2S, SPI, UART |
| Programmable | Not Verified |
