CYW20733A3KFB2GT

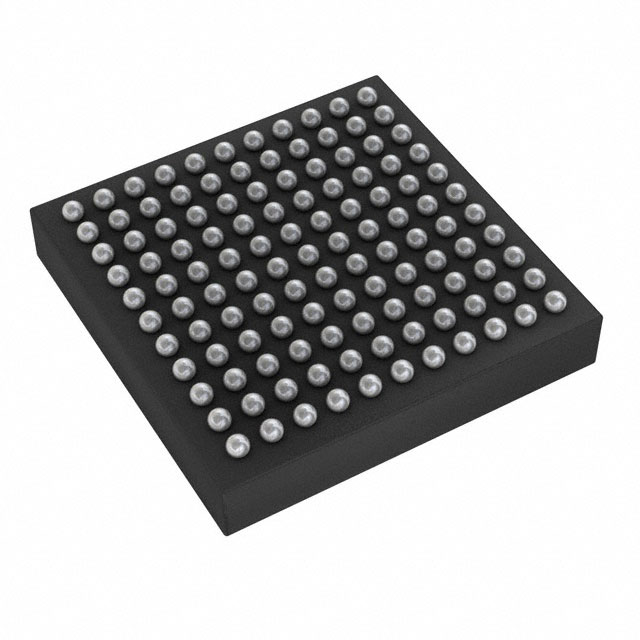

IC RF TXRX+MCU BLE 121FBGAManufacturer: Infineon Technologies
Categories: RF Transceiver ICs
Quality Control: Learn More
Infineon Technologies CYW20733A3KFB2GT is a highly integrated RF transceiver and microcontroller solution designed for Bluetooth connectivity. Operating in the 2.4GHz ISM band, this device supports Bluetooth v3.0 specifications and offers a transmission power of up to 10dBm with a receiving sensitivity of -91dBm. The CYW20733A3KFB2GT features a built-in MCU and provides serial interfaces including I2C, I2S, SPI, and UART for flexible system integration. The component is supplied in a 121-FBGA (9x9) package, suitable for surface mount applications, and operates within a temperature range of 0°C to 70°C. Typical current consumption is 47mA during transmission and 26.4mA during reception. This component finds application in various wireless communication systems, including consumer electronics and IoT devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 121-TFBGA |
| Sensitivity | -91dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Type | TxRx + MCU |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3V |
| Power - Output | 10dBm |
| Protocol | Bluetooth v3.0 |
| Current - Receiving | 26.4mA |
| Data Rate (Max) | - |
| Current - Transmitting | 47mA |
| Supplier Device Package | 121-FBGA (9x9) |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2C, I2S, SPI, UART |
| Programmable | Not Verified |
