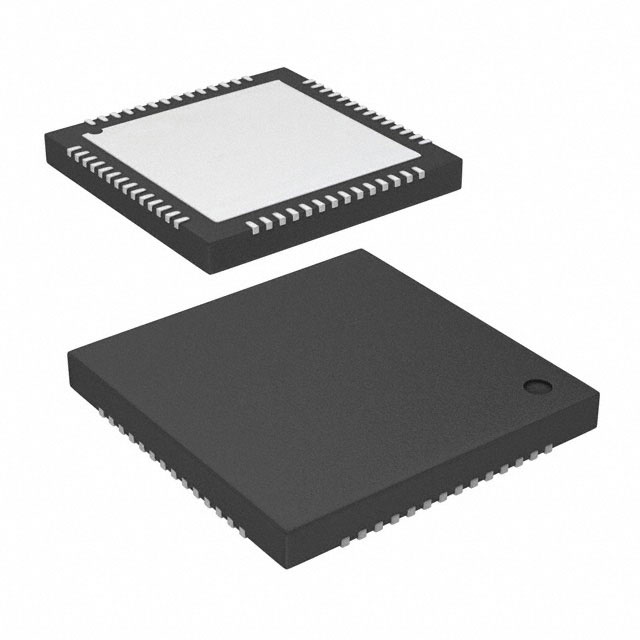

CYW20733A2KML1G
IC RF TXRX+MCU BLE 56QFNManufacturer: Infineon Technologies
Categories: RF Transceiver ICs
Quality Control: Learn More
Infineon Technologies CYW20733A2KML1G is a highly integrated wireless microcontroller designed for Bluetooth 3.0 + EDR applications. This 2.4GHz RF transceiver and MCU combo features a 56-QFN (7x7) package with an exposed pad, suitable for surface mount applications. It supports data rates up to 3Mbps and utilizes modulation schemes including 4DQPSK, 8DPSK, and GFSK. The device offers robust connectivity with I2C, SPI, and UART serial interfaces, and provides 57 GPIO pins for flexible system integration. Power consumption is optimized with typical receiving current of 28mA and transmitting current of 63mA at a 3V supply voltage, with a maximum output power of 10dBm. Its sensitivity reaches -85dBm. This component is well-suited for use in consumer electronics, wearables, and IoT devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 56-VFQFN Exposed Pad |
| Sensitivity | -85dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Type | TxRx + MCU |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3V |
| Power - Output | 10dBm |
| Protocol | Bluetooth v3.0 +EDR |
| Current - Receiving | 28mA |
| Data Rate (Max) | 3Mbps |
| Current - Transmitting | 63mA |
| Supplier Device Package | 56-QFN (7x7) |
| GPIO | 57 |
| Modulation | 4DQPSK, 8DPSK, GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
