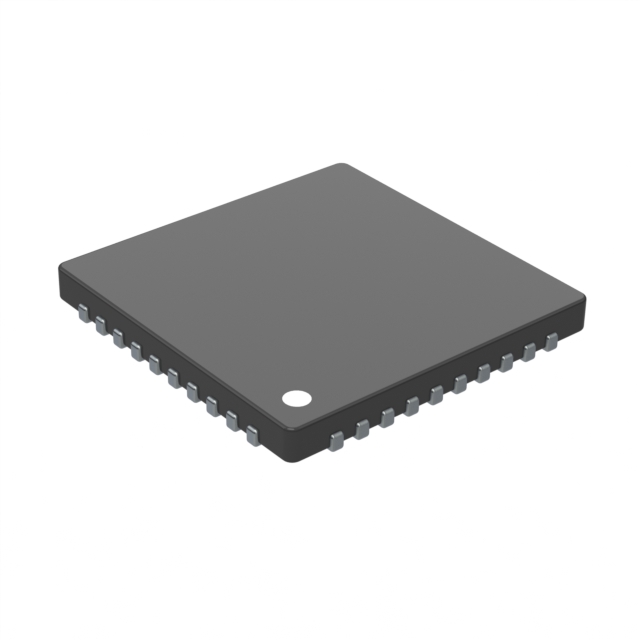

CYW20719B2KUMLG
IC RF TXRX+MCU BLE 40QFNManufacturer: Infineon Technologies
Categories: RF Transceiver ICs
Quality Control: Learn More
Infineon Technologies CYW20719B2KUMLG is a highly integrated radio frequency transceiver and microcontroller supporting Bluetooth v5.1. This component operates in the 2.4GHz band, offering a maximum data rate of 3Mbps. Key features include a transmit power of 5.5dBm and a receive sensitivity of -95.5dBm, with typical current consumption of 5.6mA during transmission and 5.9mA during reception. The device integrates 1MB of Flash memory, 2MB of ROM, and 512kB of RAM. Modulation schemes supported are 8-DPSK, 4-DQPSK, GFSK, and QPSK. It features a comprehensive set of serial interfaces including GPIO, HCI, I2C, I2S, PCM, PWM, SPI, and UART. The CYW20719B2KUMLG is supplied in a 40-UFQFN exposed pad package, suitable for surface mounting, and operates within an ambient temperature range of -30°C to 85°C. This device is commonly utilized in consumer electronics, wearables, and Internet of Things (IoT) applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 40-UFQFN Exposed Pad |
| Sensitivity | -95.5dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 1MB Flash, 2MB ROM, 512kB RAM |
| Type | TxRx + MCU |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Voltage - Supply | 1.76V ~ 3.63V |
| Power - Output | 5.5dBm |
| Protocol | Bluetooth v5.1 |
| Current - Receiving | 5.9mA |
| Data Rate (Max) | 3Mbps |
| Current - Transmitting | 5.6mA |
| Supplier Device Package | 40-QFN (5x5) |
| GPIO | 40 |
| Modulation | 8-DPSK, 4-DQPSK, GFSK, QPSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | GPIO, HCI, I2C, I2S, PCM, PWM, SPI, UART |
| Programmable | Not Verified |
