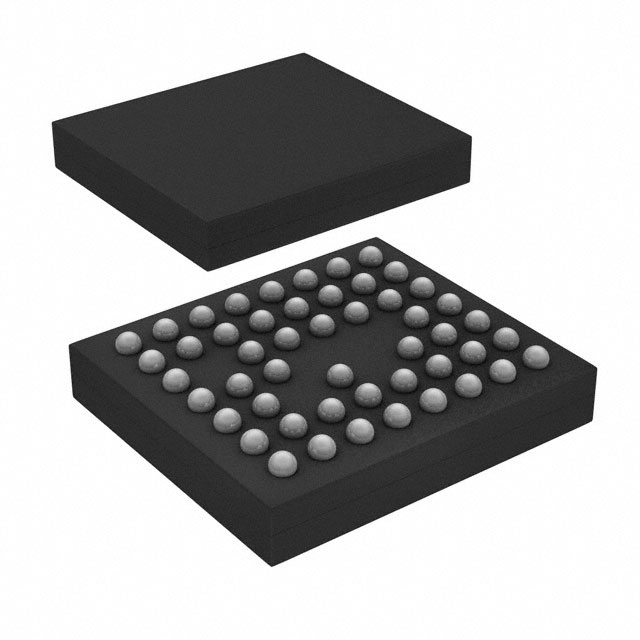

CYW20713A1KUFBXG
IC RF TXRX+MCU BLE 50FPBGAManufacturer: Infineon Technologies
Categories: RF Transceiver ICs
Quality Control: Learn More
Infineon Technologies CYW20713A1KUFBXG is a highly integrated wireless System-on-Chip (SoC) for Bluetooth applications. This device combines a Bluetooth v4.0 + EDR radio with a powerful microcontroller, offering a comprehensive solution for connected devices. Operating in the 2.4GHz ISM band, it supports data rates up to 3Mbps and modulation schemes including 4DQPSK, 8DPSK, and GFSK. Key features include a transmit power of 10dBm and a receive sensitivity of -91dBm. The CYW20713A1KUFBXG is housed in a 50-UFBGA package and supports a wide supply voltage range of 2.3V to 5.5V. It offers multiple serial interfaces such as I2C, I2S, JTAG, SPI, UART, and USB, along with 8 GPIO pins for flexible system integration. This component is suitable for a broad range of applications in the consumer electronics, industrial automation, and medical device sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 50-UFBGA |
| Sensitivity | -91dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Type | TxRx + MCU |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.3V ~ 5.5V |
| Power - Output | 10dBm |
| Protocol | Bluetooth v4.0 +EDR |
| Current - Receiving | 32mA |
| Data Rate (Max) | 3Mbps |
| Current - Transmitting | 59mA |
| Supplier Device Package | 50-FPBGA (4.5x4) |
| GPIO | 8 |
| Modulation | 4DQPSK, 8DPSK, GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2C, I2S, JTAG, SPI, UART, USB |
| Programmable | Not Verified |
