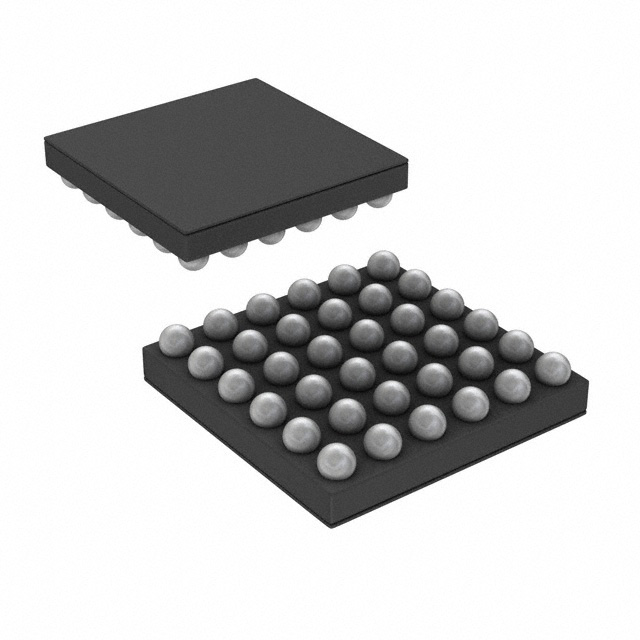

CYW20707VA1PKWBGT
IC RF TXRX+MCU BLE 36WLBGAManufacturer: Infineon Technologies
Categories: RF Transceiver ICs
Quality Control: Learn More
Infineon Technologies CYW20707VA1PKWBGT is a highly integrated RF transceiver and microcontroller solution supporting Bluetooth v4.2. This device operates in the 2.4GHz ISM band, offering a maximum data rate of 2Mbps and an output power of 9dBm. With a receiving sensitivity of -96.5dBm, it is optimized for efficient wireless communication. The CYW20707VA1PKWBGT features an embedded microcontroller with 8 GPIO pins and offers serial interfaces including I2S, SPI, and UART for versatile connectivity. Designed for surface mount applications, it is supplied in a compact 36-WLBGA (2.51x2.77) package and is available on tape and reel. Typical applications include wearable devices, smart home products, and audio accessories. Operating voltage is 3.3V, with current consumption of 26.4mA during reception and 60mA during transmission.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-UFBGA, WLBGA |
| Sensitivity | -96.5dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Type | TxRx + MCU |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply | 3.3V |
| Power - Output | 9dBm |
| Protocol | Bluetooth v4.2 |
| Current - Receiving | 26.4mA |
| Data Rate (Max) | 2Mbps |
| Current - Transmitting | 60mA |
| Supplier Device Package | 36-WLBGA (2.51x2.77) |
| GPIO | 8 |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2S, SPI, UART |
| Programmable | Not Verified |
