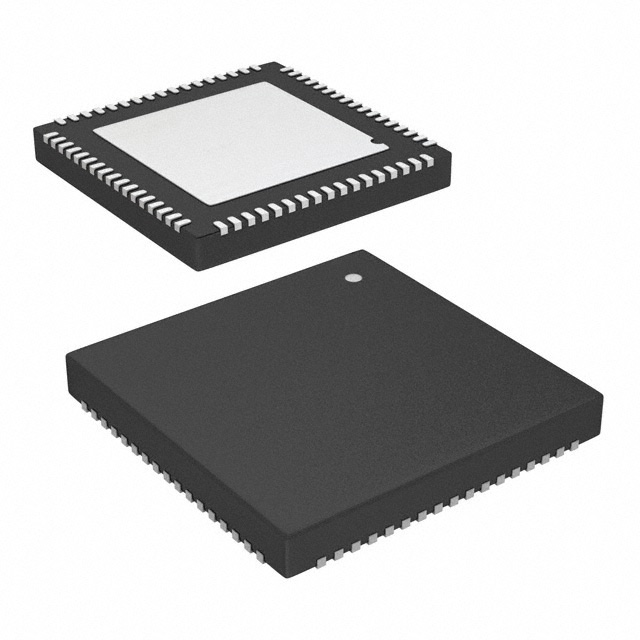

CYBL11171-56LQXIT
IC RF TXRX+MCU BLE 56QFNManufacturer: Infineon Technologies
Categories: RF Transceiver ICs
Quality Control: Learn More
Infineon Technologies CYBL11171-56LQXIT is a PRoC® series Bluetooth v4.2 RF transceiver with an integrated microcontroller. This component operates in the 2.4GHz frequency band and offers a transmit power of 3dBm with a receive sensitivity of -92dBm. It features 36 GPIO pins and onboard memory including 256kB of Flash and 32kB of SRAM. Connectivity is supported via I2C, I2S, SPI, and UART serial interfaces. The device is supplied in a 56-QFN (7x7) package, specifically a 56-UFQFN Exposed Pad, suitable for surface mounting. It operates within a voltage range of 1.9V to 5.5V and has an extended operating temperature range of -40°C to 105°C. This solution is commonly utilized in industrial automation, consumer electronics, and Internet of Things (IoT) applications requiring reliable wireless connectivity.
Additional Information
Series: PRoC®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-UFQFN Exposed Pad |
| Sensitivity | -92dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 256kB Flash, 32kB SRAM |
| Type | TxRx + MCU |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 1.9V ~ 5.5V |
| Power - Output | 3dBm |
| Protocol | Bluetooth v4.2 |
| Current - Receiving | - |
| Data Rate (Max) | - |
| Current - Transmitting | - |
| Supplier Device Package | 56-QFN (7x7) |
| GPIO | 36 |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2C, I2S, SPI, UART |
| Programmable | Not Verified |
