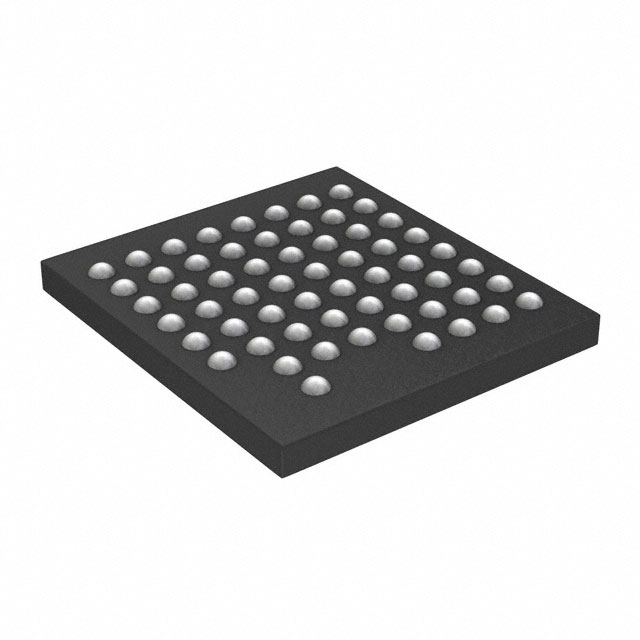

CYBL10563-68FLXIT
IC RF TXRX+MCU BLE 68WLCSPManufacturer: Infineon Technologies
Categories: RF Transceiver ICs
Quality Control: Learn More
Infineon Technologies CYBL10563-68FLXIT is a Bluetooth v4.1 compliant radio transceiver with an integrated microcontroller. This 2.4GHz GFSK device supports a maximum data rate of 1Mbps and offers a transmit power of 3dBm with a receive sensitivity of -89dBm. The CYBL10563-68FLXIT features 128kB of Flash memory and 16kB of SRAM, enabling sophisticated application development. Connectivity is facilitated through multiple serial interfaces including I2C, I2S, SPI, and UART, alongside 36 GPIO pins for flexible system integration. Operating across a voltage range of 1.9V to 5.5V and an extended temperature range of -40°C to 105°C, this component is ideal for applications in the consumer electronics, industrial automation, and Internet of Things (IoT) sectors. The 68-WLCSP (3.52x3.91) package is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 68-XFBGA, WLCSP |
| Sensitivity | -89dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 128kB Flash, 16kB SRAM |
| Type | TxRx + MCU |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 1.9V ~ 5.5V |
| Power - Output | 3dBm |
| Protocol | Bluetooth v4.1 |
| Current - Receiving | 16.4mA |
| Data Rate (Max) | 1Mbps |
| Current - Transmitting | 15.6mA |
| Supplier Device Package | 68-WLCSP (3.52x3.91) |
| GPIO | 36 |
| Modulation | GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2C, I2S, SPI, UART |
| Programmable | Not Verified |
