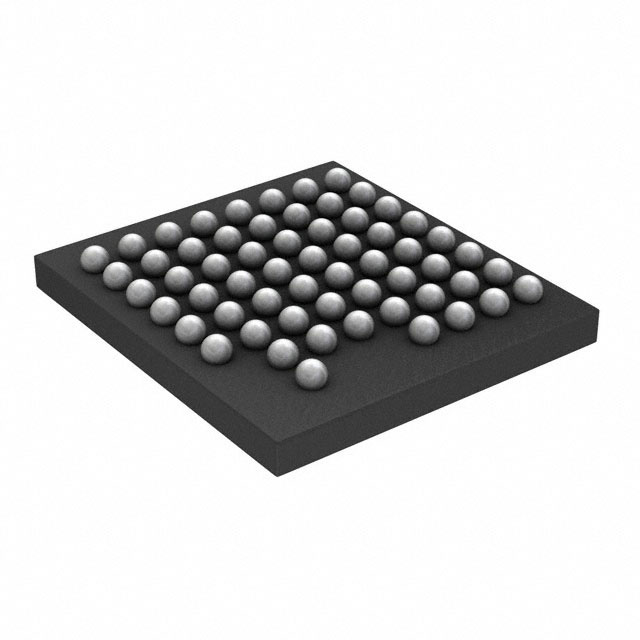

CY8C4127FNI-BL483T
IC RF TXRX+MCU BLE 68WLCSPManufacturer: Infineon Technologies
Categories: RF Transceiver ICs
Quality Control: Learn More
Infineon Technologies CY8C4127FNI-BL483T, a PSOC™ 4 CY8C41xx BLE series component, is a highly integrated RF transceiver and microcontroller designed for Bluetooth v4.2 applications. This 68-WLCSP packaged device operates in the 2.4GHz ISM band, supporting GFSK modulation with a maximum data rate of 1Mbps. It offers a transmit power of up to 3dBm and a receive sensitivity of -92dBm. On-chip resources include 128kB of Flash memory and 16kB of SRAM, complemented by 36 GPIO pins. Power consumption is optimized, with typical receive current at 16.4mA-18.7mA and transmit current at 16.5mA-20mA. The device supports serial interfaces such as I2C, SPI, and UART, and operates across a voltage supply range of 1.8V to 5.5V. This component is suitable for use in consumer electronics, industrial automation, and medical devices.
Additional Information
Series: PSOC™ 4 CY8C41xx BLERoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 68-UFBGA, WLCSP |
| Sensitivity | -92dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 128kB Flash, 16kB SRAM |
| Type | TxRx + MCU |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.8V ~ 5.5V |
| Power - Output | 3dBm |
| Protocol | Bluetooth v4.2 |
| Current - Receiving | 16.4mA ~ 18.7mA |
| Data Rate (Max) | 1Mbps |
| Current - Transmitting | 16.5mA ~ 20mA |
| Supplier Device Package | 68-WLCSP (3.52x3.91) |
| GPIO | 36 |
| Modulation | GFSK |
| RF Family/Standard | Bluetooth, General ISM > 1GHz |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
