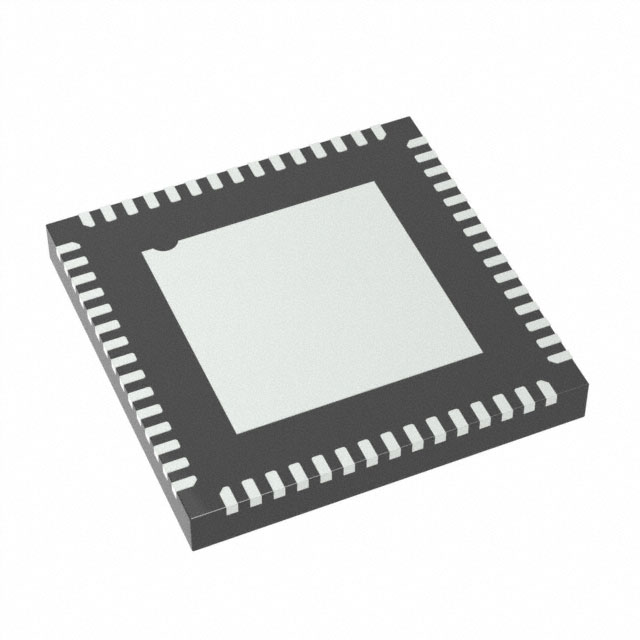

BCM20735KMLG
IC RF TXRX+MCU BLE 60QFNManufacturer: Infineon Technologies
Categories: RF Transceiver ICs
Quality Control: Learn More
Infineon Technologies BCM20735KMLG is a highly integrated RF transceiver with an embedded microcontroller, supporting Bluetooth v4.2. This device operates in the 2.4GHz ISM band, utilizing GFSK modulation. It offers a maximum data rate of 2Mbps and a transmit output power of 10dBm, with a typical receive sensitivity of -94.5dBm. The BCM20735KMLG features multiple serial interfaces including I2C, I2S, SPI, and UART, enabling flexible connectivity. Its compact 60-VFQFN Exposed Pad package (7x7 mm) facilitates surface mounting. Operating within a temperature range of -30°C to 85°C and requiring a 3.3V supply, this component is suitable for applications in consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 60-VFQFN Exposed Pad |
| Sensitivity | -94.5dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Type | TxRx + MCU |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply | 3.3V |
| Power - Output | 10dBm |
| Protocol | Bluetooth v4.2 |
| Current - Receiving | 8mA |
| Data Rate (Max) | 2Mbps |
| Current - Transmitting | 18mA |
| Supplier Device Package | 60-QFN (7x7) |
| Modulation | GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2C, I2S, SPI, UART |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

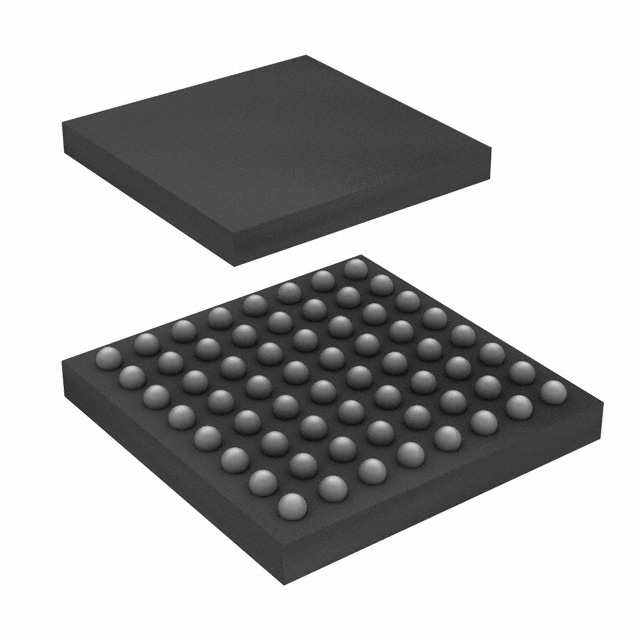

CYW20738A1KFBGT
