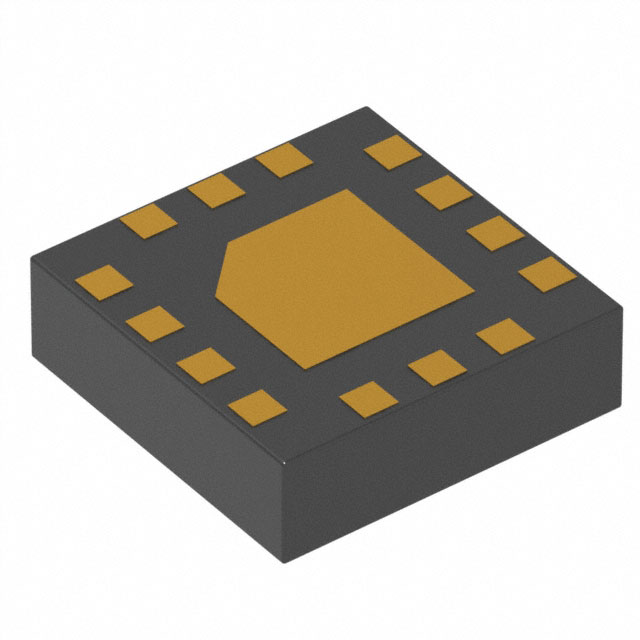

BGS18MA14E6327XTSA1
IC RF SWITCH SP8T 3.8GHZ ATSLP14Manufacturer: Infineon Technologies
Categories: RF Switches
Quality Control: Learn More
Infineon Technologies BGS18MA14E6327XTSA1 is a Single Pole, Eight Throw (SP8T) RF switch designed for high-performance wireless applications. This component operates across a frequency range of 100MHz to 3.8GHz, featuring a typical insertion loss of 0.7dB and 29dB isolation at 3.6GHz. The switch boasts an impressive IIP3 of 65dBm, making it suitable for demanding mobile communication standards such as LTE and W-CDMA. Its low operating voltage range of 1.7V to 3.4V enhances power efficiency. The BGS18MA14E6327XTSA1 is housed in a compact 14-UFQFN exposed pad package (PG-ATSLP-14-10) with surface mount capability, delivered on tape and reel. This RF switch is commonly utilized in mobile infrastructure, base stations, and wireless devices requiring sophisticated RF signal routing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-UFQFN Exposed Pad |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SP8T |
| RF Type | LTE, W-CDMA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.7V ~ 3.4V |
| Insertion Loss | 0.7dB |
| Frequency Range | 100MHz ~ 3.8GHz |
| Topology | - |
| P1dB | - |
| Test Frequency | 3.6GHz ~ 3.8GHz |
| Isolation | 29dB |
| Supplier Device Package | PG-ATSLP-14-10 |
| IIP3 | 65dBm |
