BGS16MN14E6327XTSA1
IC RF SWITCH SP6T 2.7GHZ TSNP14Manufacturer: Infineon Technologies
Categories: RF Switches
Quality Control: Learn More
The Infineon Technologies BGS16MN14E6327XTSA1 is a Single Pole Six Throw (SP6T) RF switch designed for applications operating within the 100MHz to 2.7GHz frequency range. This component offers 33dB isolation and a typical insertion loss of 0.45dB at 2GHz, with a characteristic impedance of 50 Ohms. It supports WCDMA RF types and operates from a supply voltage of 2.5V to 5.5V. The device is housed in a 14-WFQFN Exposed Pad package (PG-TSNP-14-3) and is supplied on a Tape & Reel. Typical applications include mobile infrastructure, base stations, and wireless communication systems. The operating temperature range is -30°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |

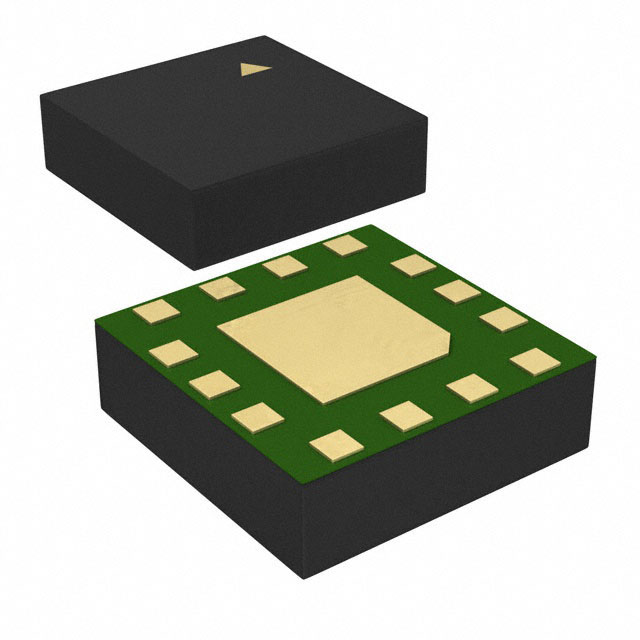

| Package / Case | 14-WFQFN Exposed Pad |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SP6T |
| RF Type | WCDMA |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply | 2.5V ~ 5.5V |
| Insertion Loss | 0.45dB |
| Frequency Range | 100MHz ~ 2.7GHz |
| Topology | - |
| P1dB | - |
| Test Frequency | 2GHz |
| Isolation | 33dB |
| Supplier Device Package | PG-TSNP-14-3 |
| IIP3 | - |
