BGS15MA12E6327XTSA1

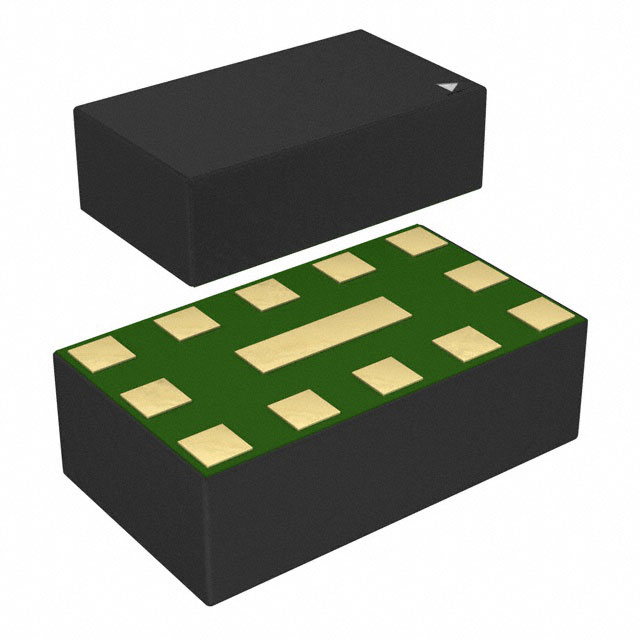

IC RF SWITCH SP5T 2.9GHZ ATSLP12Manufacturer: Infineon Technologies
Categories: RF Switches
Quality Control: Learn More
Infineon Technologies BGS15MA12E6327XTSA1 is an RF Switch IC featuring a Single Pole, Five Throw (SP5T) topology. This device operates across a frequency range of 100MHz to 2.9GHz, with a typical insertion loss of 0.45dB at 2.5GHz and an isolation of 25dB. It is designed for WCDMA applications and maintains a 50 Ohm impedance. The switch supports a P1dB of 30dBm and an IIP3 value that is not specified. Power is supplied via a voltage range of 2.2V to 5.5V. The component is housed in a 12-UFQFN Exposed Pad package, specifically the ATSLP-12-4, and is surface mountable. Operating temperatures range from -30°C to 85°C. This RF switch is commonly employed in mobile infrastructure and wireless communication systems. It is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFQFN Exposed Pad |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SP5T |
| RF Type | WCDMA |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply | 2.2V ~ 5.5V |
| Insertion Loss | 0.45dB |
| Frequency Range | 100MHz ~ 2.9GHz |
| Topology | - |
| P1dB | 30dBm |
| Test Frequency | 2.5GHz |
| Isolation | 25dB |
| Supplier Device Package | ATSLP-12-4 |
| IIP3 | - |
