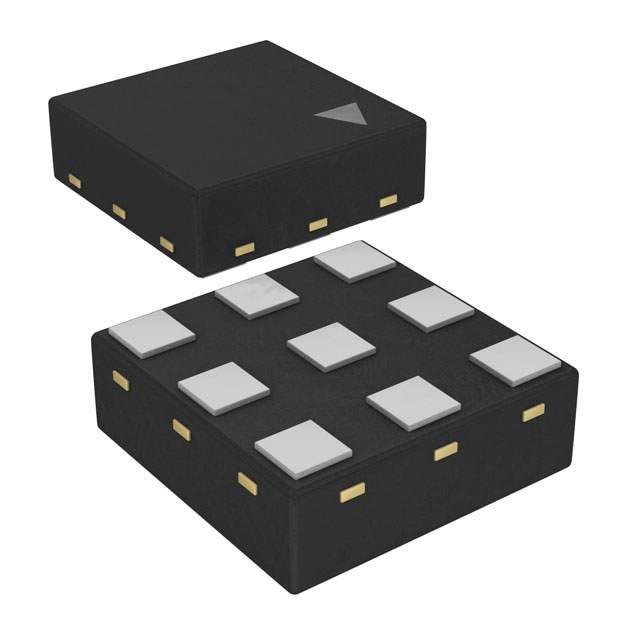

BGS13S2N9E6327XTSA1
IC RF SWITCH SP3T 3GHZ TSNP9-3Manufacturer: Infineon Technologies
Categories: RF Switches
Quality Control: Learn More
Infineon Technologies BGS13S2N9E6327XTSA1 is a Single Pole Triple Throw (SP3T) RF switch designed for high-frequency applications up to 3 GHz. This component features a 50 Ohm impedance and offers 23 dB isolation at its test frequency of 3 GHz, with a maximum insertion loss of 0.55 dB. Operating within a voltage range of 1.8V to 3.3V, it is suitable for applications requiring efficient signal routing. The BGS13S2N9E6327XTSA1 is housed in a 9-XFLGA package, specifically the PG-TSNP-9-3, and is supplied in tape and reel packaging. Its operational temperature range is -40°C to 85°C, making it reliable for demanding environments. This RF switch finds utility in various sectors, including wireless infrastructure and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 9-XFLGA |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SP3T |
| RF Type | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.3V |
| Insertion Loss | 0.55dB |
| Frequency Range | 100MHz ~ 3GHz |
| Topology | - |
| P1dB | - |
| Test Frequency | 3GHz |
| Isolation | 23dB |
| Supplier Device Package | PG-TSNP-9-3 |
| IIP3 | - |
