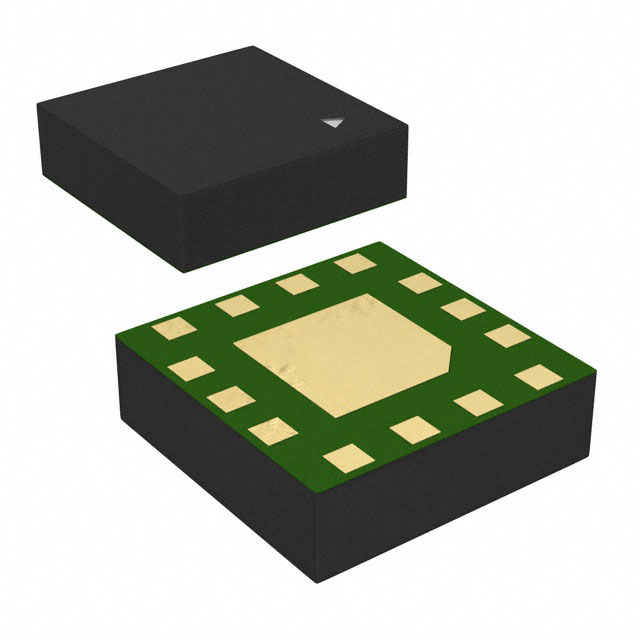

BGS13GA14E6327XTSA1
IC RF SWITCH SP3T 6GHZ ATSLP14-4Manufacturer: Infineon Technologies
Categories: RF Switches
Quality Control: Learn More
Infineon Technologies BGS13GA14E6327XTSA1 is a surface mount RF switch IC. This Single Pole Triple Throw (SP3T) device operates with a 3V supply and offers a frequency range from 100MHz to 6GHz. It features a 50Ohm impedance with a typical insertion loss of 0.65dB and isolation of 27dB, both measured at 6GHz. The ATSLP-14-4 package, a 14-UFQFN with an exposed pad, is supplied on tape and reel. This component is suitable for applications in wireless communications, including mobile infrastructure and broadband access. The operating temperature range is -30°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-UFQFN Exposed Pad |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SP3T |
| RF Type | - |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply | 3V |
| Insertion Loss | 0.65dB |
| Frequency Range | 100MHz ~ 6GHz |
| Topology | - |
| P1dB | - |
| Test Frequency | 6GHz |
| Isolation | 27dB |
| Supplier Device Package | ATSLP-14-4 |
| IIP3 | - |
