BGS12SN6E6327XTSA1
IC RF SWITCH SPDT 6GHZ TSNP6-2Manufacturer: Infineon Technologies
Categories: RF Switches
Quality Control: Learn More

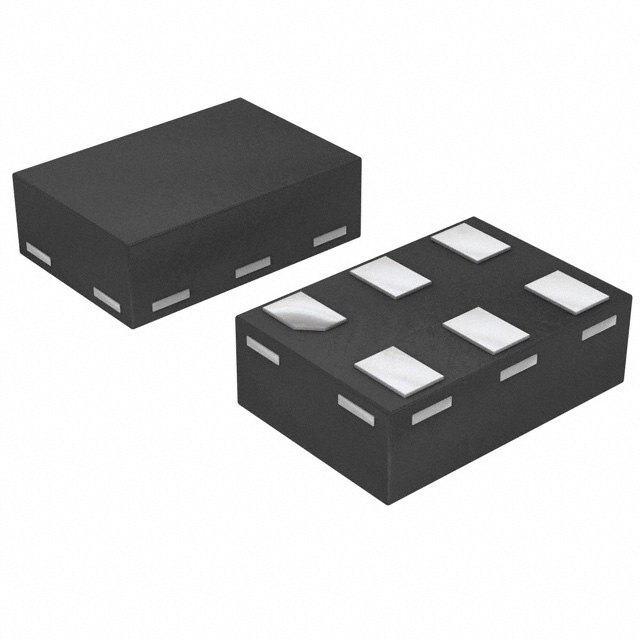

Infineon Technologies BGS12SN6E6327XTSA1 is an SPDT RF switch operating from 100MHz to 6GHz. Designed for high-performance wireless applications, this component features 50 Ohm impedance matching and a low insertion loss of 0.65dB at 6GHz. It offers 21dB of isolation and supports Bluetooth and WLAN standards. The device operates from a supply voltage range of 1.8V to 3.5V and has an operating temperature range of -40°C to 85°C. The BGS12SN6E6327XTSA1 is packaged in a compact 6-XFDFN (PG-TSNP-6-2) for surface mounting and is supplied on tape and reel. This RF switch is commonly utilized in telecommunications infrastructure, consumer electronics, and automotive wireless systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFDFN |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SPDT |
| RF Type | Bluetooth, WLAN |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.5V |
| Insertion Loss | 0.65dB |
| Frequency Range | 100MHz ~ 6GHz |
| Topology | - |
| P1dB | - |
| Test Frequency | 6GHz |
| Isolation | 21dB |
| Supplier Device Package | PG-TSNP-6-2 |
| IIP3 | - |
