BGS12AL76E6327XTMA1

IC RF SWITCH SPDT 3GHZ TSLP7-6

Manufacturer: Infineon Technologies

Categories: RF Switches

Quality Control: Learn More

The Infineon Technologies BGS12AL76E6327XTMA1 is a general-purpose, Single Pole Double Throw (SPDT) RF switch operating from 30 MHz to 3 GHz. This reflective switch features a 50 Ohm impedance and an insertion loss of 0.5 dB at its test frequency of 2 GHz, with 25 dB of isolation. Designed for surface mounting, it utilizes a PG-TSLP-7-6 package, a 6-XFDFN with an exposed pad. The component is controlled by a single line and includes DC blocking for flexible signal routing. It operates within a voltage supply range of 2.4V to 3.6V and is specified for an operating temperature range of -30°C to 85°C. This RF switch finds application in various wireless communication systems, including mobile infrastructure and consumer electronics. It is supplied in Tape & Reel packaging.

Additional Information

Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
FeaturesDC Blocked, Single Line Control
PackagingTape & Reel (TR)

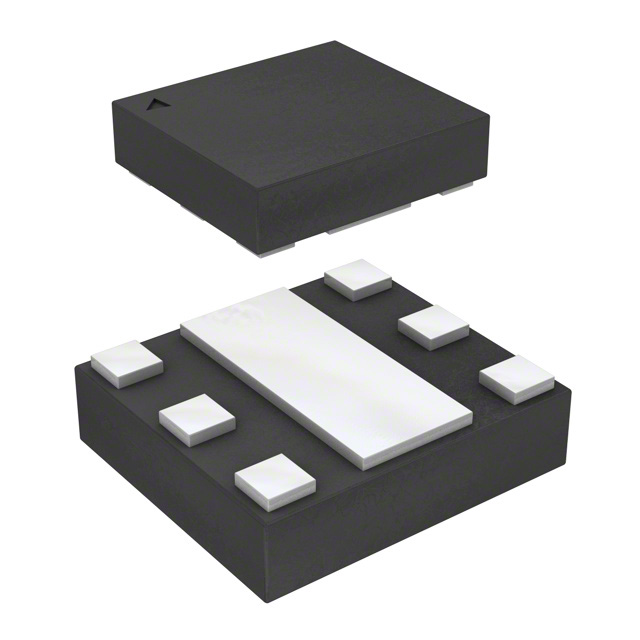

Package / Case6-XFDFN Exposed Pad
Impedance50Ohm
Mounting TypeSurface Mount
CircuitSPDT
RF TypeGeneral Purpose
Operating Temperature-30°C ~ 85°C
Voltage - Supply2.4V ~ 3.6V
Insertion Loss0.5dB
Frequency Range30MHz ~ 3GHz
TopologyReflective
P1dB-
Test Frequency2GHz
Isolation25dB
Supplier Device PackagePG-TSLP-7-6
IIP3-
