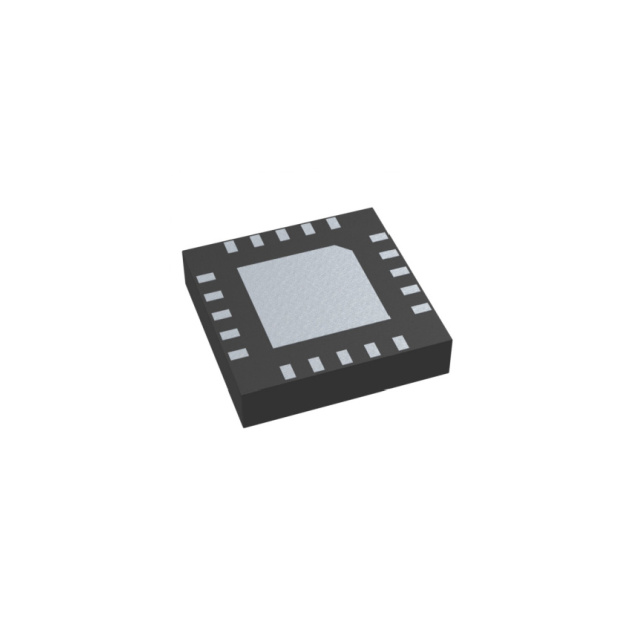

BGS110MN20E6327XTSA1
IC RF SWITCH SP10T 2.7GHZ TSNP20Manufacturer: Infineon Technologies
Categories: RF Switches
Quality Control: Learn More
Infineon Technologies BGS110MN20E6327XTSA1 is a general-purpose single-pole, ten-throw (SP10T) RF switch IC. This component offers 50Ohm impedance and operates within a frequency range of 100MHz to 2.7GHz, with a test frequency of 2.7GHz. It features an insertion loss of 0.6dB and is packaged in a 20-WFQFN exposed pad (PG-TSNP-20-1), supplied on tape and reel. The operating temperature range is -30°C to 85°C, with a supply voltage capability of 2.5V to 5.5V. This RF switch is suitable for applications in wireless infrastructure, automotive radar, and industrial communication systems where reliable signal routing is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad |
| Impedance | 50Ohm |
| Circuit | SP10T |
| RF Type | General Purpose |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply | 2.5V ~ 5.5V |
| Insertion Loss | 0.6dB |
| Frequency Range | 100MHz ~ 2.7GHz |
| Topology | - |
| P1dB | - |
| Test Frequency | 2.7GHz |
| Isolation | - |
| Supplier Device Package | PG-TSNP-20-1 |
| IIP3 | - |
