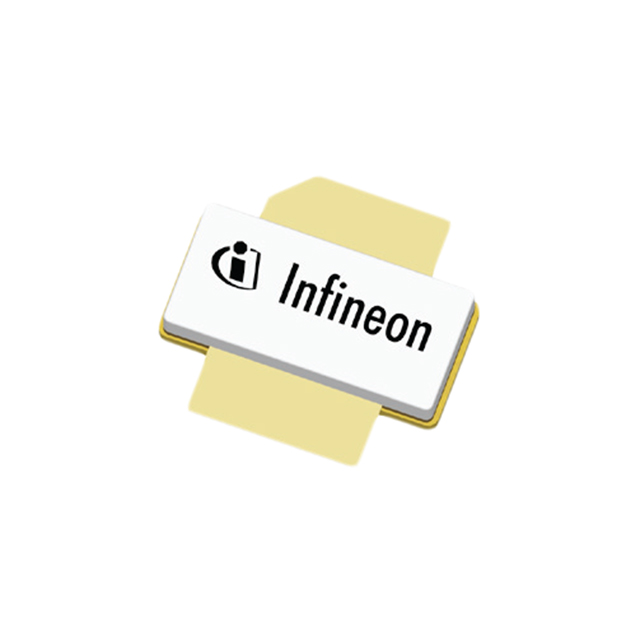

PTVA123501FCV1XWSA1
RF MOSFET LDMOS H-37248-2Manufacturer: Infineon Technologies
Categories: RF FETs, MOSFETs
Quality Control: Learn More
The Infineon Technologies PTVA123501FCV1XWSA1 is a high-power RF LDMOS transistor designed for robust performance in demanding applications. Operating within the 1.2GHz to 1.4GHz frequency range, this component delivers a typical 17dB gain and an output power of 350W. Its LDMOS technology ensures excellent efficiency and linearity. The device is housed in an H-37248-2 package, a 2-Flatpack configuration with fin leads and flanged mounting for effective thermal management. Rated at 105V, this dual-configuration transistor is suitable for applications in base station infrastructure, industrial heating, and other high-frequency power amplifier systems. The PTVA123501FCV1XWSA1 is supplied in tray packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 2-Flatpack, Fin Leads, Flanged |
| Current Rating (Amps) | 10µA |
| Mounting Type | Surface Mount |
| Frequency | 1.2GHz ~ 1.4GHz |
| Configuration | Dual |
| Power - Output | 350W |
| Gain | 17dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | H-37248-2 |
| Voltage - Rated | 105 V |
