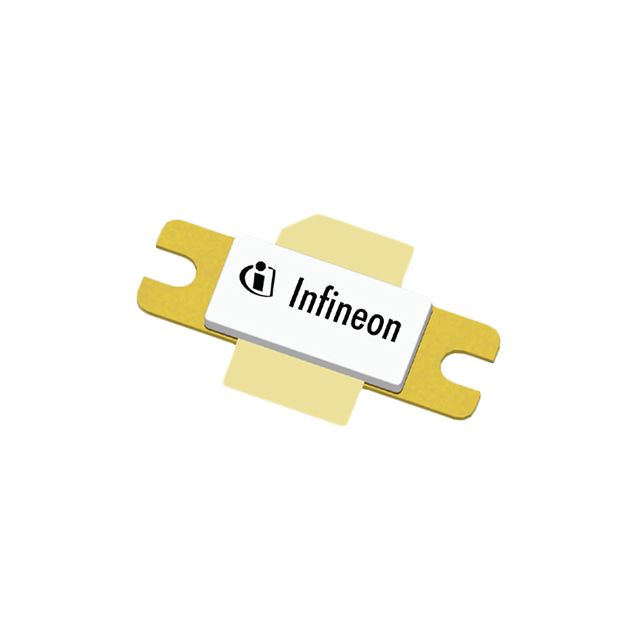

PTVA123501ECV2XWSA1
RF MOSFET LDMOS H-36248-2Manufacturer: Infineon Technologies
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Infineon Technologies PTVA123501ECV2XWSA1 is an LDMOS RF power transistor designed for high-power applications. Operating within a frequency range of 1.2 GHz to 1.4 GHz, this dual-configuration device delivers a power output of 350W with a typical gain of 17dB. It features a robust 105V voltage rating and is housed in a H-36248-2 package, a 2-Flatpack with fin leads, suitable for surface mounting. The PTVA123501ECV2XWSA1 is commonly utilized in industrial, medical, and defense electronics, where reliable high-frequency power amplification is critical. This component is supplied in tray packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 2-Flatpack, Fin Leads |
| Current Rating (Amps) | 10µA |
| Mounting Type | Surface Mount |
| Frequency | 1.2GHz ~ 1.4GHz |
| Configuration | Dual |
| Power - Output | 350W |
| Gain | 17dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | H-36248-2 |
| Voltage - Rated | 105 V |
