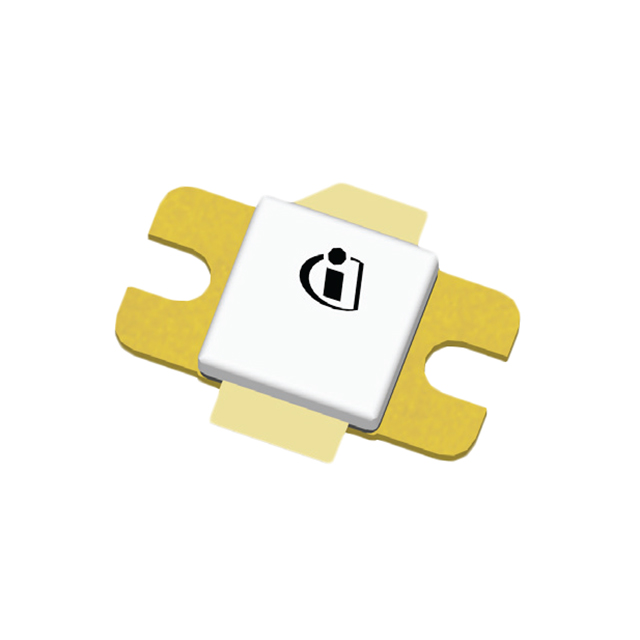

PTVA120251EAV2XWSA1
RF MOSFET LDMOS H-36265-2Manufacturer: Infineon Technologies
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Infineon Technologies PTVA120251EAV2XWSA1 is a high-power RF LDMOS transistor. Operating across a frequency range of 500MHz to 1.4GHz, this device delivers 30W of output power with a typical power gain of 16dB. Designed for demanding RF applications, it features a 50V voltage rating and utilizes LDMOS technology for robust performance. The PTVA120251EAV2XWSA1 is housed in an H-36265-2 surface-mount package, commonly employed in base station infrastructure, industrial heating, and broadcast transmitters. Its specifications are optimized for linearity and efficiency in power amplification stages. This component is supplied in tray packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | H-36265-2 |
| Current Rating (Amps) | - |
| Mounting Type | Surface Mount |
| Frequency | 500MHz ~ 1.4GHz |
| Power - Output | 30W |
| Gain | 16dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | H-36265-2 |
| Voltage - Rated | 50 V |
Request a Quote
