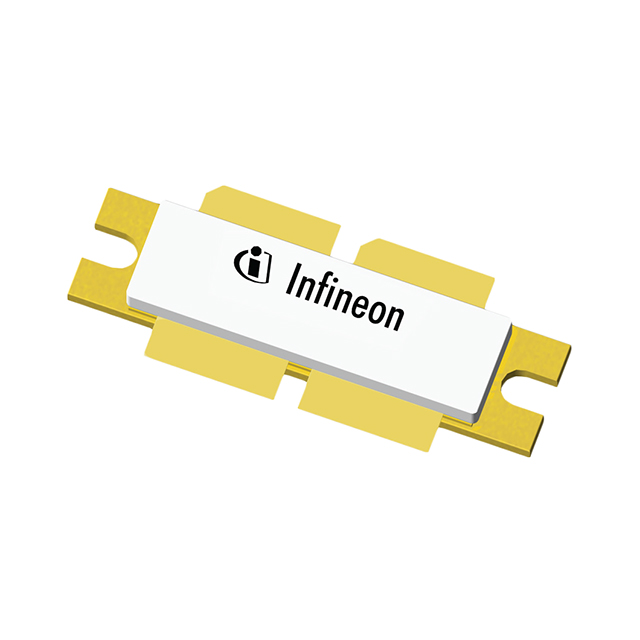

PTVA035002EVV1XWSA1
RF MOSFET LDMOS H-36275-4Manufacturer: Infineon Technologies
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Infineon Technologies PTVA035002EVV1XWSA1 is a high-power RF LDMOS power transistor designed for demanding applications. Operating within the 390MHz to 450MHz frequency range, this device delivers a typical gain of 15.5dB and a robust 500W output power. The PTVA035002EVV1XWSA1 features a 50V voltage rating and is housed in the H-36275-4 package, facilitating efficient chassis mounting. Its LDMOS technology ensures excellent performance characteristics for RF power amplification. This component is suitable for use in industrial, medical, and defense sectors requiring reliable high-frequency power handling capabilities. The device is supplied in a tray for convenient handling.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | H-36275-4 |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 390MHz ~ 450MHz |
| Configuration | Dual |
| Power - Output | 500W |
| Gain | 15.5dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | H-36275-4 |
| Voltage - Rated | 50 V |
