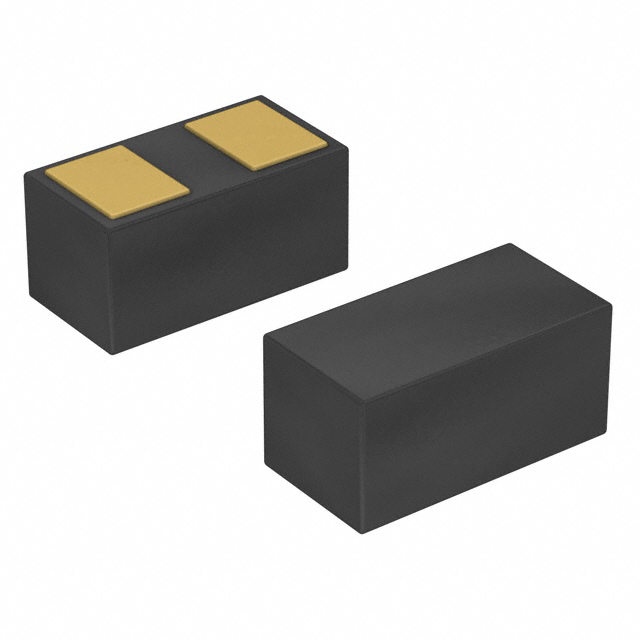

BAT2402LSE6327XTSA1
DIODE SCHOTTKY 4V 100MW TSSLP-2Manufacturer: Infineon Technologies
Categories: RF Diodes
Quality Control: Learn More
Infineon Technologies BAT2402LSE6327XTSA1 is a single Schottky RF diode designed for high-frequency applications. This component features a reverse breakdown voltage of 4V and a maximum forward current of 110mA. With a power dissipation of 100mW and a low capacitance of 0.23pF at 0V and 1MHz, it is suitable for demanding RF circuitry. The diode operates at junction temperatures up to 150°C. Packaged in a compact PG-TSSLP-2-1 (0201 Metric) surface-mount package, it is supplied on tape and reel for automated assembly. This device is commonly utilized in mobile communications, radar systems, and other high-frequency signal processing applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0201 (0603 Metric) |
| Diode Type | Schottky - Single |
| Operating Temperature | 150°C (TJ) |
| Capacitance @ Vr, F | 0.23pF @ 0V, 1MHz |
| Resistance @ If, F | - |
| Voltage - Peak Reverse (Max) | 4V |
| Supplier Device Package | PG-TSSLP-2-1 |
| Current - Max | 110 mA |
| Power Dissipation (Max) | 100 mW |
Request a Quote
