BAT 15-07LRH E6327
DIODE ARRAY SCHOTTKY 4V TSLP4Manufacturer: Infineon Technologies
Categories: RF Diodes
Quality Control: Learn More

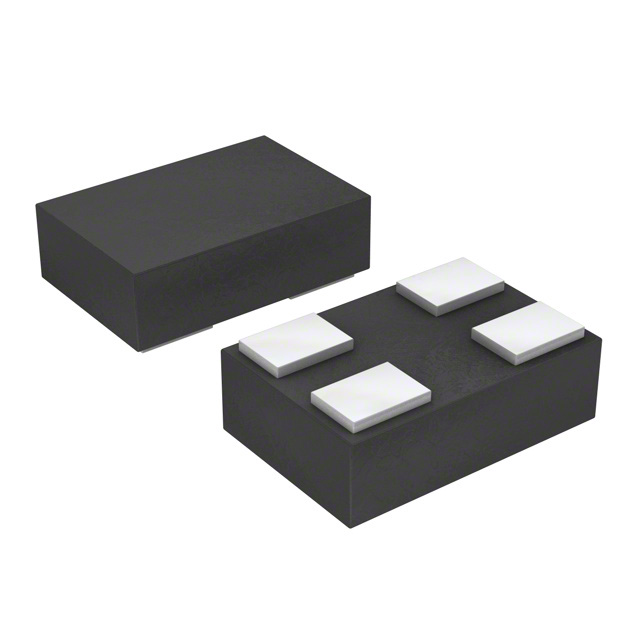

Infineon Technologies' BAT-15-07LRH-E6327 is a Schottky diode array designed for high-frequency applications. This component features two independent Schottky diodes, each rated for a maximum reverse voltage of 4V and a continuous forward current of 110 mA. The diodes exhibit a low capacitance of 0.35pF at 0V and 1MHz, coupled with a low on-resistance of 5.5 Ohms at 50mA and 1MHz, making it suitable for demanding RF circuitry. Operating at temperatures up to 150°C (TJ), the BAT-15-07LRH-E6327 is housed in a compact PG-TSLP-4-7 package, commonly known as 4-XFDFN, supplied in tape and reel. This diode array finds application in various industries, including telecommunications and consumer electronics, where efficient RF switching and signal detection are critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFDFN |
| Diode Type | Schottky - 2 Independent |
| Operating Temperature | 150°C (TJ) |
| Capacitance @ Vr, F | 0.35pF @ 0V, 1MHz |
| Resistance @ If, F | 5.5Ohm @ 50mA, 1MHz |
| Voltage - Peak Reverse (Max) | 4V |
| Supplier Device Package | PG-TSLP-4-7 |
| Current - Max | 110 mA |
