BAR 64-02V E6327
RF DIODE PIN 150V 250MW SC79-2Manufacturer: Infineon Technologies
Categories: RF Diodes
Quality Control: Learn More

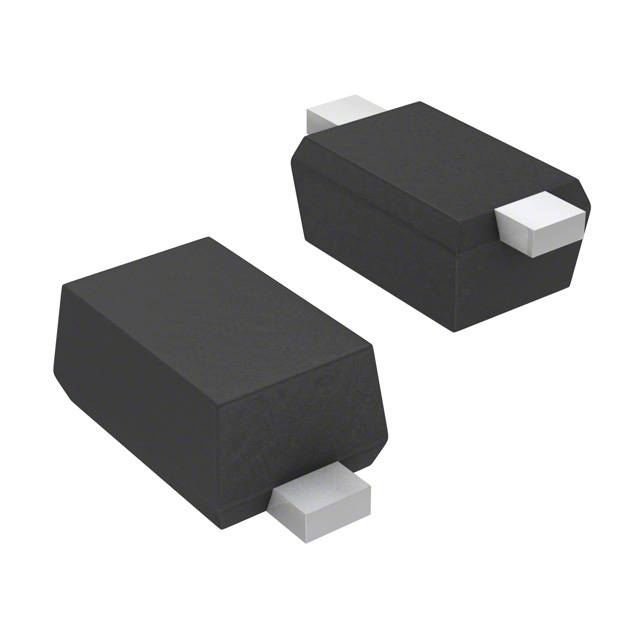

Infineon Technologies BAR-64-02V-E6327 is a single PIN RF diode designed for high-frequency applications. This component features a maximum reverse voltage of 150V and a continuous forward current handling capability of 100 mA. With a maximum power dissipation of 250 mW, it exhibits a low junction capacitance of 0.35pF at 20V and 1MHz, and a low on-state resistance of 1.35 Ohm at 100 mA and 100 MHz. The diode is housed in a compact PG-SC79-2 (SOD-523) package and is supplied on a tape and reel for automated assembly. This device is suitable for use in various RF switching and attenuation circuits across telecommunications and industrial automation sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-79, SOD-523 |
| Diode Type | PIN - Single |
| Operating Temperature | 150°C (TJ) |
| Capacitance @ Vr, F | 0.35pF @ 20V, 1MHz |
| Resistance @ If, F | 1.35Ohm @ 100mA, 100MHz |
| Voltage - Peak Reverse (Max) | 150V |
| Supplier Device Package | PG-SC79-2 |
| Current - Max | 100 mA |
| Power Dissipation (Max) | 250 mW |
Request a Quote
