BGM1043N7E6327XUSA1

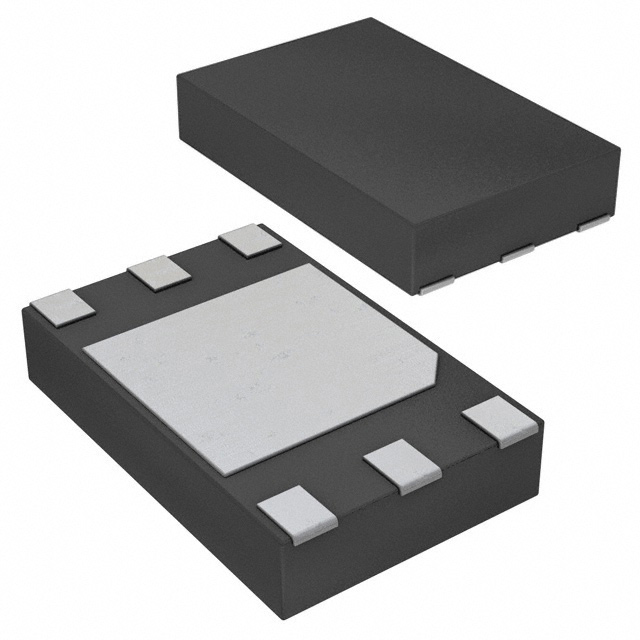

IC AMP GALI 1575.42MHZ TSNP7-10Manufacturer: Infineon Technologies
Categories: RF Amplifiers
Quality Control: Learn More
Infineon Technologies BGM1043N7E6327XUSA1 is a high-performance RF amplifier IC designed for Global Navigation Satellite Systems (GNSS) applications, specifically supporting Galileo, GLONASS, and GPS signals. Operating at a center frequency of 1575.42MHz, this component offers a typical gain of 14.6dB to 15.1dB across its operating frequency range. With a low noise figure of 1.5dB, it ensures excellent signal sensitivity. The device is supplied in a TSNP-7-10 (6-WFDFN Exposed Pad) package, suitable for surface mounting. It requires a low supply current of 4mA and operates within a voltage range of 1.5V to 3.6V. The BGM1043N7E6327XUSA1 is delivered on tape and reel, facilitating automated assembly processes. This amplifier is utilized in telecommunications and automotive industries requiring precise satellite signal acquisition and processing.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 1575.42MHz |
| RF Type | Galileo, GLONASS, GPS |
| Voltage - Supply | 1.5V ~ 3.6V |
| Gain | 14.6dB, 15.1dB |
| Current - Supply | 4mA |
| Noise Figure | 1.5dB |
| P1dB | -6dBm |
| Test Frequency | 1575.42MHz, 1598.06MHz ~ 1605.38MHz |
| Supplier Device Package | TSNP-7-10 |
