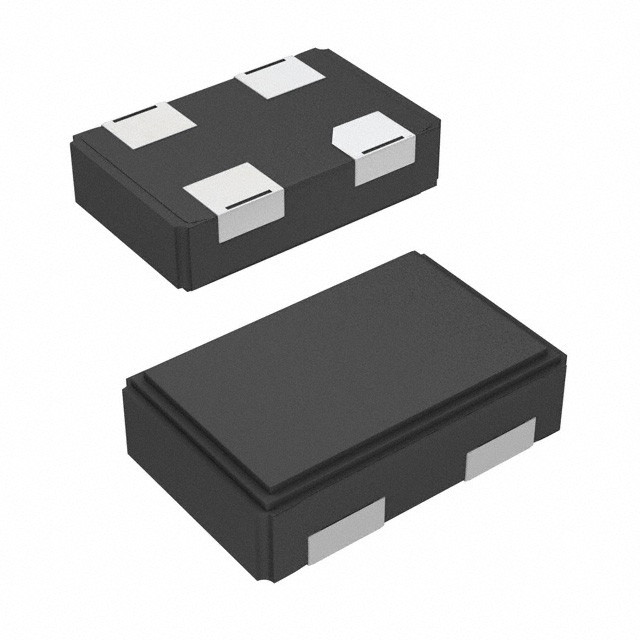

CY25701FLXCT
IC OSC XTAL PROG 4-CLCCManufacturer: Infineon Technologies
Categories: Programmable Oscillators
Quality Control: Learn More
Infineon Technologies CY25701FLXCT is a programmable XO (Standard) CMOS oscillator designed for applications requiring precise frequency generation. This component supports an output frequency range from 10 MHz to 166 MHz, utilizing an external crystal as its base resonator. The CY25701FLXCT operates at a 3.3V supply voltage and features an Enable/Disable function for flexible control. Packaged in a 4-CLCC format with surface mount mounting, its dimensions are 5.00mm in length and 3.20mm in width, with a seated height of 1.30mm. The oscillator offers a frequency stability of ±25ppm and is suitable for operation within a temperature range of -20°C to 70°C. The device is programmable by the user to set the desired output frequency. This component finds application in various electronic systems where accurate clock generation is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-CLCC |
| Size / Dimension | 0.197"" L x 0.126"" W (5.00mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | Enable/Disable |
| Programmable Type | Blank (User Must Program) |
| Type | XO (Standard) |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±25ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 50mA |
| Height - Seated (Max) | 0.051"" (1.30mm) |
| Frequency Stability (Total) | - |
| Available Frequency Range | 10 MHz ~ 166 MHz |
| Base Resonator | Crystal |
