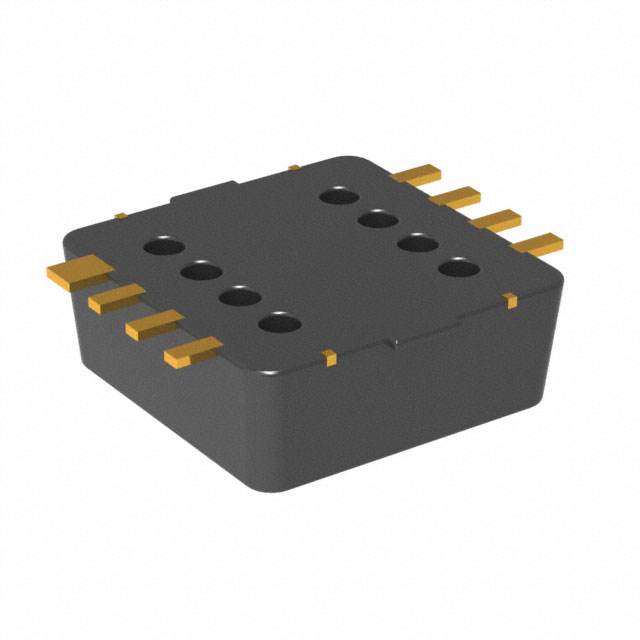

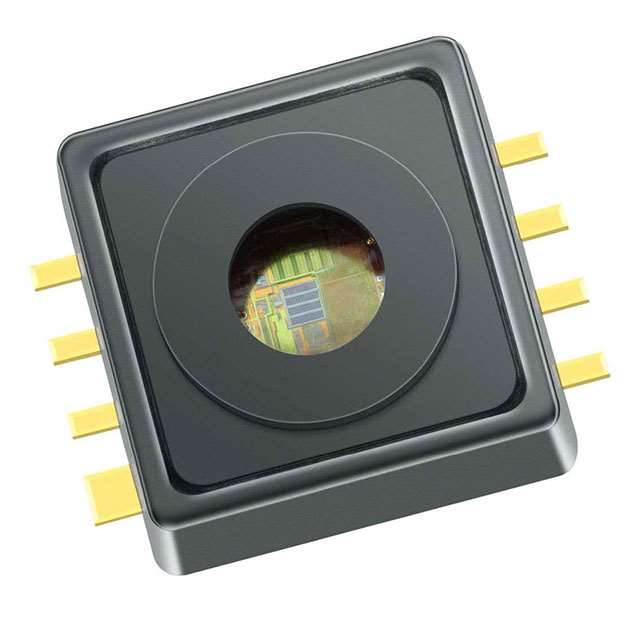

KP229F0711XTMA1
SENSOR 36.26PSIA 4.65V DSOF8Manufacturer: Infineon Technologies
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 2.9PSI ~ 36.26PSI (20kPa ~ 250kPa) Absolute 0.4 V ~ 4.65 V 8-SMD Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD Module |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 0.4 V ~ 4.65 V |
| Operating Pressure | 2.9PSI ~ 36.26PSI (20kPa ~ 250kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.493PSI (±3.4kPa) |
| Operating Temperature | -40°C ~ 140°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 4.5V ~ 5.5V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | PG-DSOF-8-162 |
| Port Style | No Port |
| Maximum Pressure | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
Request a Quote
Clients Also Buy

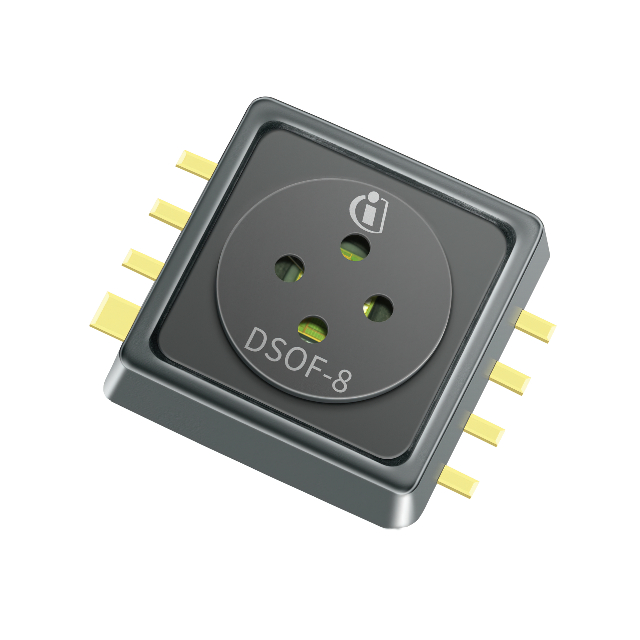

KP300XTMA1
