KP126N6165
SENSOR 23.93PSIA 4.8V DSOF8Manufacturer: Infineon Technologies
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

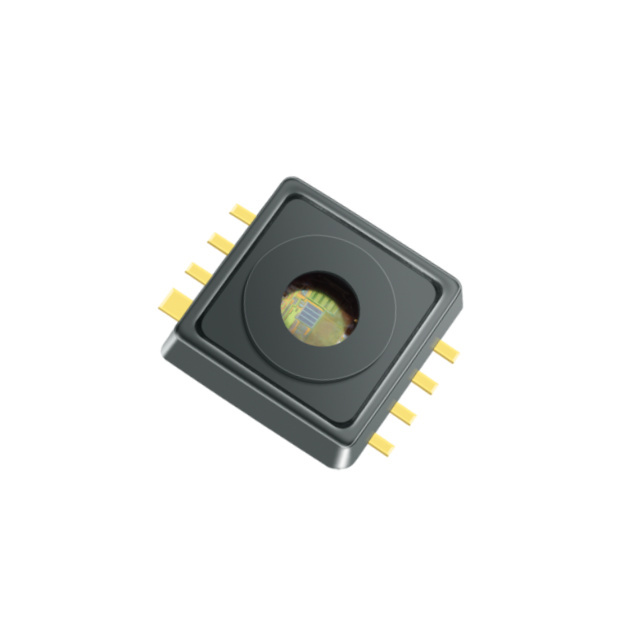

Infineon Technologies KP126N6165 is an absolute pressure sensor designed for surface mount applications. This 8-SMD module offers an operating pressure range of 8.7 PSI to 23.93 PSI (60 kPa to 165 kPa) with an accuracy of ±0.145 PSI (±1 kPa). The sensor provides an analog voltage output ranging from 0.2 V to 4.8 V, featuring amplified and temperature-compensated signals. It operates within a supply voltage of 4.5 V to 5.5 V and a wide temperature range of -40°C to 125°C. This component is suitable for demanding environments across automotive and industrial automation sectors. The KP126N6165 is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD Module |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 0.2 V ~ 4.8 V |
| Operating Pressure | 8.7PSI ~ 23.93PSI (60kPa ~ 165kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.145PSI (±1kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 4.5V ~ 5.5V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | - |
