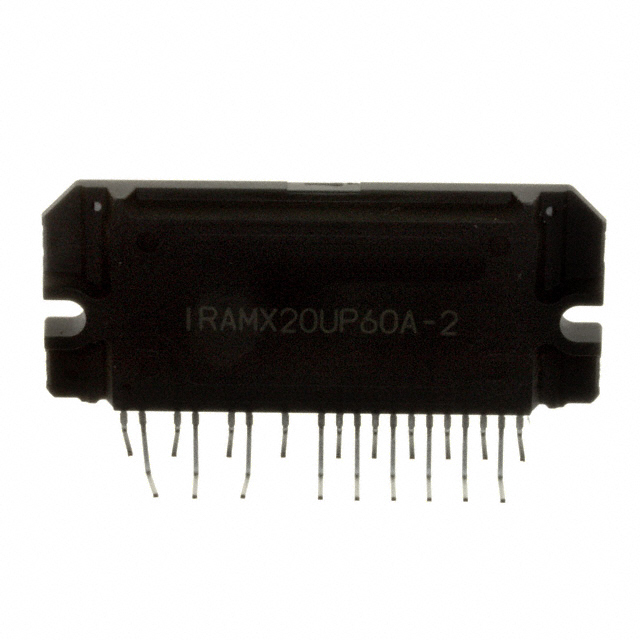

IRAMX20UP60A-2
IC PWR HYBRID 600V 20A 23PWRSIPManufacturer: Infineon Technologies
Categories: Power Driver Modules
Quality Control: Learn More
Infineon Technologies iMOTION™ series IRAMX20UP60A-2 is a highly integrated 3-phase power driver module featuring IGBT technology. This component is rated for 600V and a continuous current of 20A. The module is housed in a 23-PowerSIP package with 19 formed leads, designed for through-hole mounting. It offers 2000Vrms isolation voltage. The IRAMX20UP60A-2 is a comprehensive solution for motor control applications, facilitating efficient power conversion. Key industries leveraging this component include industrial automation, home appliances, and electric vehicle powertrains.
Additional Information
Series: iMOTION™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 23-PowerSIP Module, 19 Leads, Formed Leads |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase |
| Voltage - Isolation | 2000Vrms |
| Current | 20 A |
| Voltage | 600 V |
