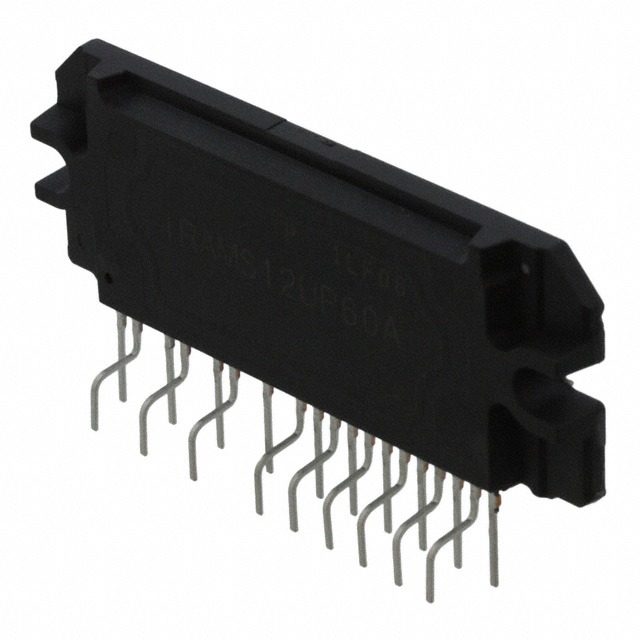

IRAMS12UP60A
IC PWR HYBRID 600V 12A SIP2Manufacturer: Infineon Technologies
Categories: Power Driver Modules
Quality Control: Learn More
The Infineon Technologies IRAMS12UP60A is a 3-phase IGBT power module designed for demanding applications. This high-performance component, part of the iMOTION™ series, features a robust 600V breakdown voltage and a 12A continuous current capability, making it suitable for motor control and power conversion systems. The module offers 2000Vrms isolation voltage for enhanced safety and reliability. Its 23-PowerSIP Module package, with 19 formed leads, facilitates efficient thermal management and straightforward through-hole mounting. This device finds extensive use in industrial automation, renewable energy inverters, and electric vehicle powertrains, where robust power switching and integration are critical.
Additional Information
Series: iMOTION™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 23-PowerSIP Module, 19 Leads, Formed Leads |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase |
| Voltage - Isolation | 2000Vrms |
| Current | 12 A |
| Voltage | 600 V |
