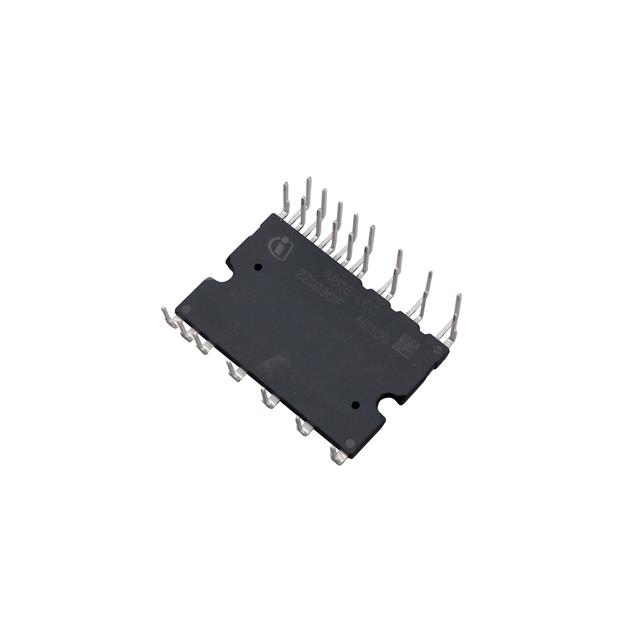

IM818LCCXKMA1
CIPOS MAXI 1200V 15A PG-MDIP-24Manufacturer: Infineon Technologies
Categories: Power Driver Modules
Quality Control: Learn More
Infineon Technologies CIPOS™ IM818LCCXKMA1 is a high-performance 3-phase inverter power driver module. This IGBT-based component features a robust 1.2 kV breakdown voltage and a continuous current capability of 20 A, with a peak current rating of 15 A. The module utilizes a 24-PowerDIP package with through-hole mounting, offering a compact solution for demanding power applications. Isolation voltage is rated at 2500Vrms for enhanced system reliability. This device is well-suited for use in industrial automation, electric vehicle powertrains, and renewable energy inverters where efficient and reliable power conversion is critical.
Additional Information
Series: CIPOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-PowerDIP Module (1.094"", 27.80mm) |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase Inverter |
| Voltage - Isolation | 2500Vrms |
| Current | 20 A |
| Voltage | 1.2 kV |
