IM393X6E2XKLA1
POWER MODULE 600V 20A MDIP30Manufacturer: Infineon Technologies
Categories: Power Driver Modules
Quality Control: Learn More

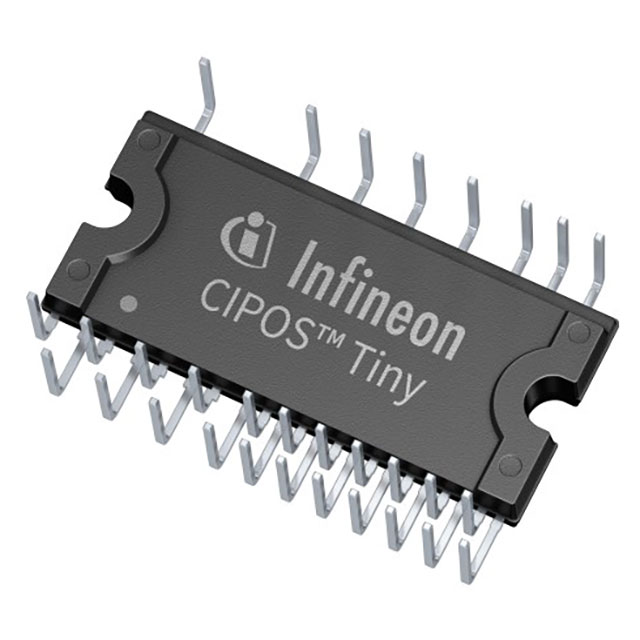

Infineon Technologies IM393X6E2XKLA1, a CIPOS™ series power driver module, offers a robust 600V, 20A solution for three-phase inverter applications. This IGBT-based module features a 30-lead 35-PowerDIP package with through-hole mounting, providing a 22.00mm (0.866") footprint. With an isolation voltage of 2000Vrms, it is engineered for demanding applications in industrial automation, electric vehicle powertrains, and renewable energy systems. The module integrates gate driver circuitry with power switching components, streamlining system design and reducing component count. Its high thermal performance and rugged construction ensure reliable operation in challenging environments.
Additional Information
Series: CIPOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 35-PowerDIP Module (0.866"", 22.00mm), 30 Leads |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase Inverter |
| Voltage - Isolation | 2000Vrms |
| Current | 20 A |
| Voltage | 600 V |
