TLE9104SHXUMA1

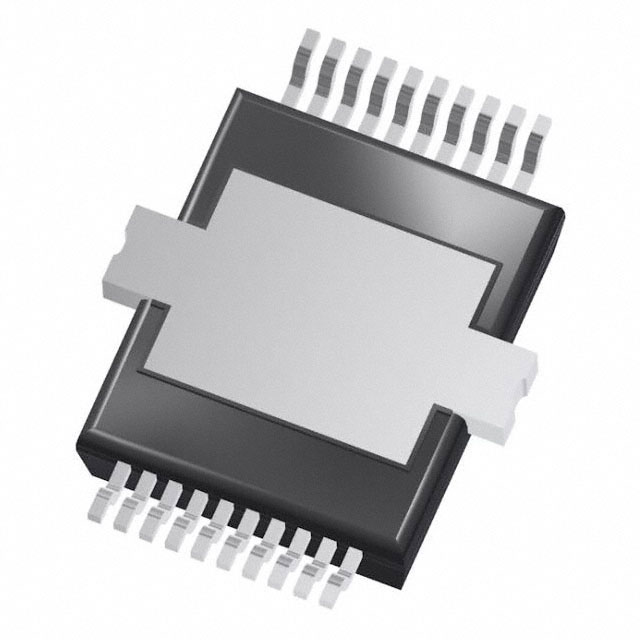

IC POWERTRAIN SWITCH DSO20-88Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies TLE9104SHXUMA1 is a 4-channel low-side power switch IC with N-channel output configuration. Designed for robust power management, this component offers a 1:1 input-to-output ratio and a maximum output current of 3A per channel. The device features comprehensive fault protection, including fixed current limiting, open load detection, over-temperature protection, reverse battery protection, and short circuit protection. Key operational features include slew rate control and a status flag for monitoring. The TLE9104SHXUMA1 interfaces via SPI and is housed in a 20-BFSOP (PG-DSO-20-88) exposed pad package, suitable for surface mounting. It operates with a supply voltage range of 3V to 5.5V and supports load voltages up to 60V. This component is typically utilized in automotive powertrain control and general power distribution applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-BFSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | Low Side |
| Rds On (Typ) | 150mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 50V ~ 60V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 3A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-DSO-20-88 |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Reverse Battery, Short Circuit |
