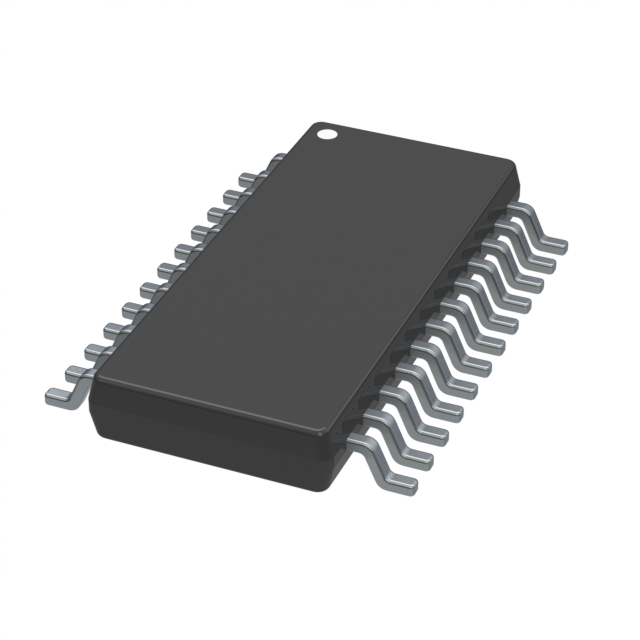

TLE75080ESHXUMA1
IC PWR DRVR N-CHAN 1:8 TSDSO-24Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies TLE75080ESHXUMA1 is a high-side power switch/driver featuring an 8-channel N-channel configuration with a 1:8 ratio. This AEC-Q100 qualified component is designed for demanding automotive applications. Each output can deliver up to 330mA with a typical Rds On of 1 Ohm. Integrated fault protection includes fixed current limiting, open load detection, over-temperature shutdown, and over-voltage protection. The device supports an SPI interface for control and features slew rate control for optimized switching. Operating from a 3V to 5.5V supply (Vcc/Vdd) and handling load voltages from 3V to 28V, the TLE75080ESHXUMA1 is housed in a 24-TSSOP (PG-TSDSO-24-21) exposed pad package, suitable for surface mounting. This component is utilized in various automotive systems requiring robust power distribution and load driving capabilities. It is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Interface | SPI |
| Switch Type | Relay, Solenoid Driver |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 1Ohm |
| Input Type | - |
| Voltage - Load | 3V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 330mA |
| Ratio - Input:Output | 1:8 |
| Supplier Device Package | PG-TSDSO-24-21 |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Grade | Automotive |
| Qualification | AEC-Q100 |
