TLE7241EXUMA2

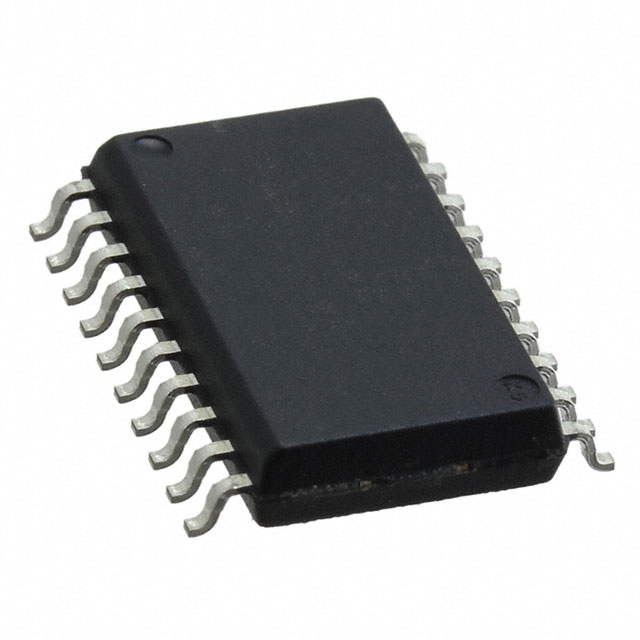

IC PWR DRIVER N-CHAN 1:2 DSO-20Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies TLE7241EXUMA2 is a high-side power switch featuring two N-channel outputs, configurable as a 1:2 ratio. This device, packaged in a 20-SOIC (PG-DSO-20-27) with an exposed pad, provides a robust solution for demanding automotive and industrial applications requiring precise load management. With a continuous output current capability of 1.2A per channel and a low on-resistance of 240mOhm (typical), the TLE7241EXUMA2 ensures efficient power delivery. Integrated fault protection mechanisms include fixed current limiting, open-load detection, over-temperature shutdown, and over-voltage protection, enhancing system reliability. The device operates with supply voltages from 4.75V to 5.25V and supports load voltages from 9V to 18V. Control is managed via an SPI interface, and features such as slew rate control contribute to EMI mitigation. Operating temperature ranges from -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | SPI |
| Switch Type | Relay, Solenoid Driver |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | 240mOhm |
| Input Type | - |
| Voltage - Load | 9V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Current - Output (Max) | 1.2A |
| Ratio - Input:Output | 1:2 |
| Supplier Device Package | PG-DSO-20-27 |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
