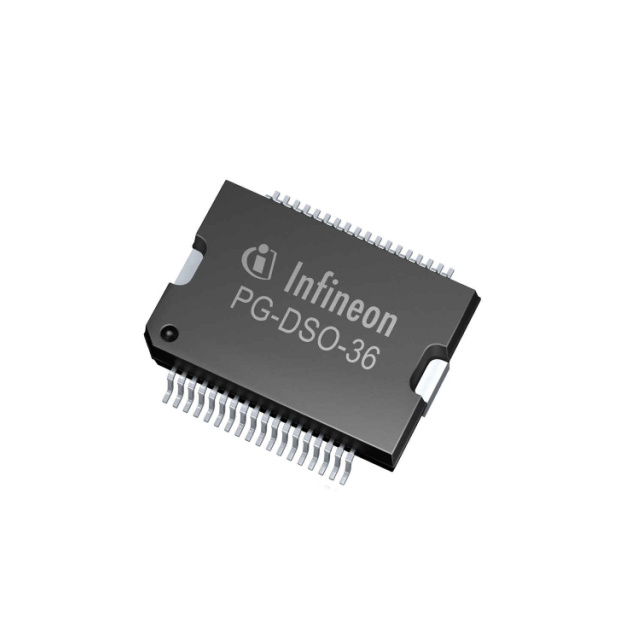

TLE6288RNUMA1
IC PWR SWITCH N-CHAN 1:1 DSO-36Manufacturer: Infineon Technologies
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Infineon Technologies TLE6288RNUMA1 is a high-side power load driver designed for automotive applications, qualified to AEC-Q100 standards. This electronic component, housed in a 36-BSSOP (PG-DSO-36-54) package with an exposed pad, features six N-channel outputs configurable as high-side or low-side switches. It offers robust fault protection mechanisms including open load detection, over-temperature, and over-voltage protection, along with a status flag feature. Communication and control are managed via an SPI interface. The device operates with a supply voltage range of 4.5V to 5.5V and supports load voltages from 6V to 16V, with a typical on-resistance of 150mOhm. It is supplied in a tape and reel for surface mounting. The TLE6288RNUMA1 is suitable for demanding power distribution and load driving requirements in automotive systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-BSSOP (0.433"", 11.00mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side or Low Side |
| Rds On (Typ) | 150mOhm |
| Input Type | - |
| Voltage - Load | 6V ~ 16V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | - |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-DSO-36-54 |
| Fault Protection | Open Load Detect, Over Temperature, Over Voltage |
| Grade | Automotive |
| Qualification | AEC-Q100 |
